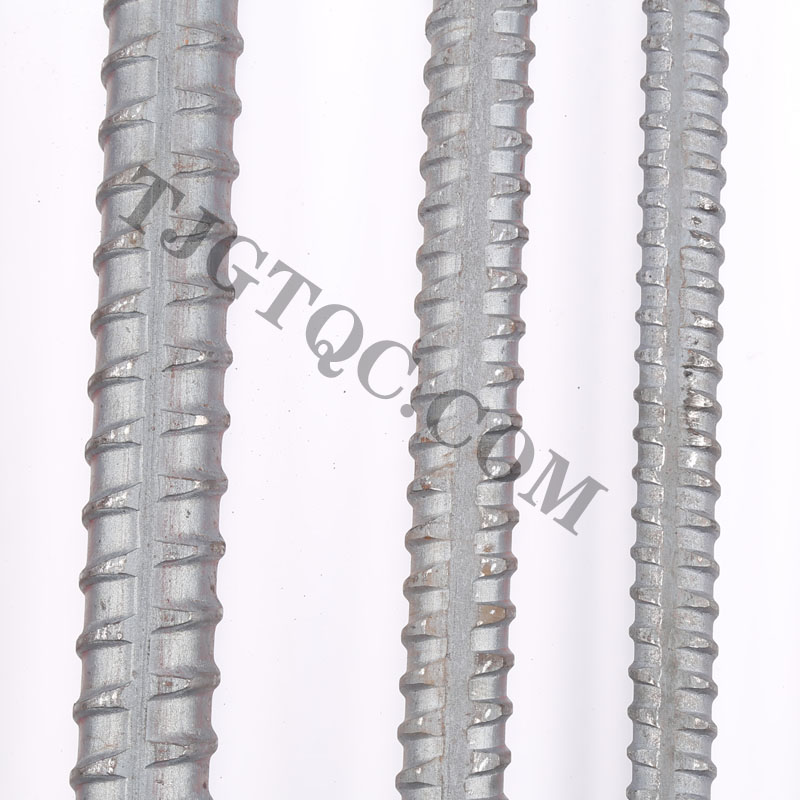

THREAD BAR FOR ENGINEERING AND FULLY THREADED BAR
post-tension rod system has clear advantages, it does require expertise and precision during construction. Certified engineers and skilled workers are required to ensure proper installation, tensioniIn addition, post-tension rod systems enable a more efficient and faster construction process, minimizing traffic disruptions and shortening project durations. With the ability to prestress bridge sections off-site, builders can significantly reduce on-site construction time and logistical challenges. This advantage is particularly important in densely populated areas where traffic congestion is a major problem.
While the implementation of a ng and monitoring of rebar. In addition, regular inspections and maintenance checks should be performed to assess the condition of the bar and address any potential issues promptly.
Address
8787 Winchester Blvd.
Campbell, CA 95008
sales@loremipsum.com
support@loremipsum.com
Phone
Sales: 1-800-694-7466
Support: 1-800-800-2775
Hours
Monday-Friday: 9am to 6pm
Saturday, Sunday: Closed
WANT TO WORK WITH US?
Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
Dv | Dh | ||||||
mm | mm | mm | mm | mm | mm | mm2 | kg/m |
15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
