Strength grade standard for precision rolled threaded steel
PSB830/PSB930/PSB1080/PSB1200
Precision rolled threaded steel bars can be roughly classified into the following three aspects: application field, geometric shape, material, and specifications.
According to the application field, it can be divided into five categories:
1. Precision rolled threaded steel bars for non-destructive testing of buildings: mainly used for durability testing and structural non-destructive testing of buildings.
2. Precision rolled threaded steel bars for geotechnical engineering monitoring: mainly used for on-site inspection of dams, tunnels, landslides, and geotechnical engineering tests.
3. Advanced precision rolled threaded steel bars: mainly used for evaluating the structural characteristics of materials such as coatings, pipelines, metals, and plates.
Classify according to geometric shape, that is, classify according to the cross-sectional shape of the ribs and the different spacing of the ribs.

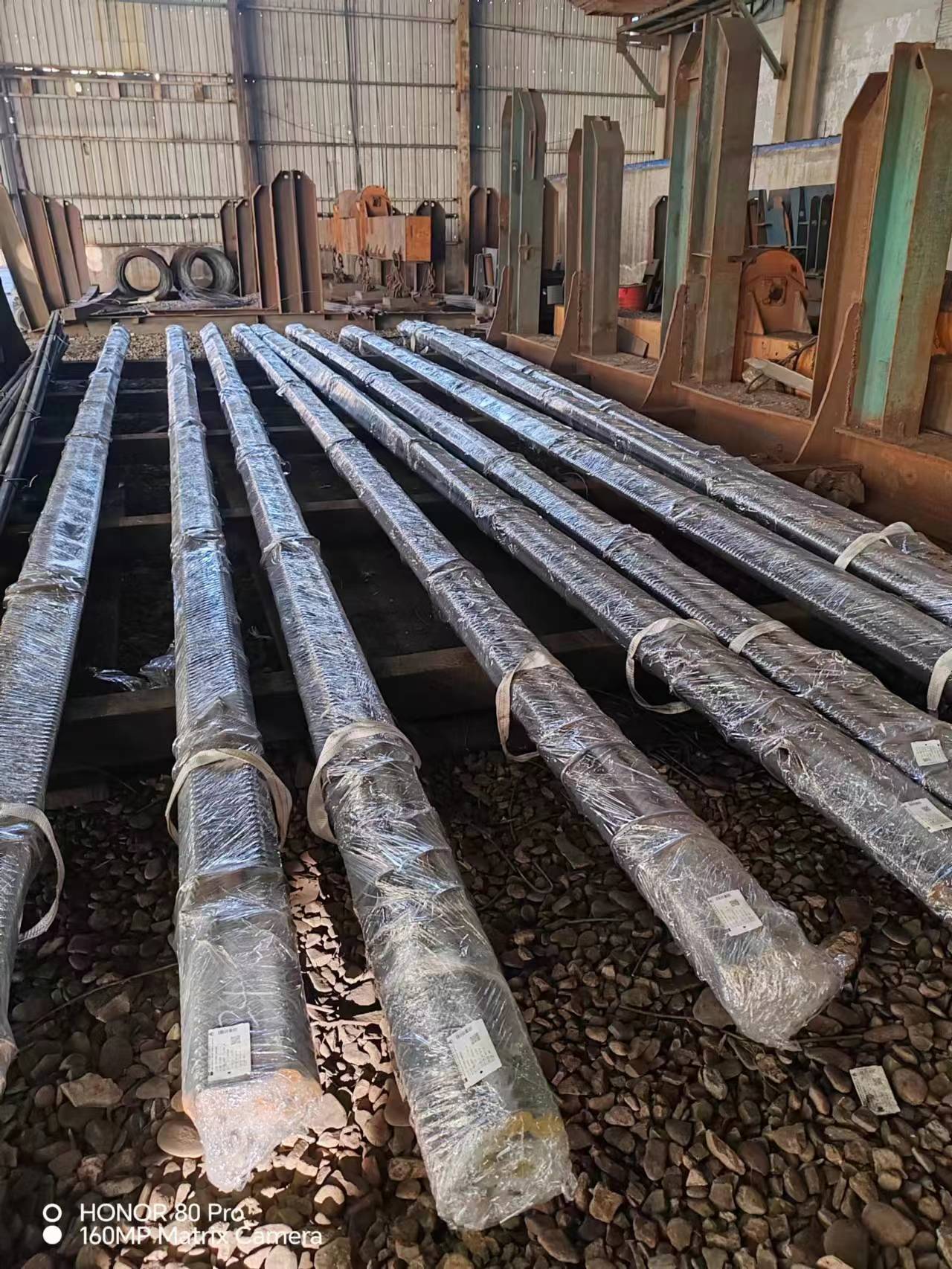

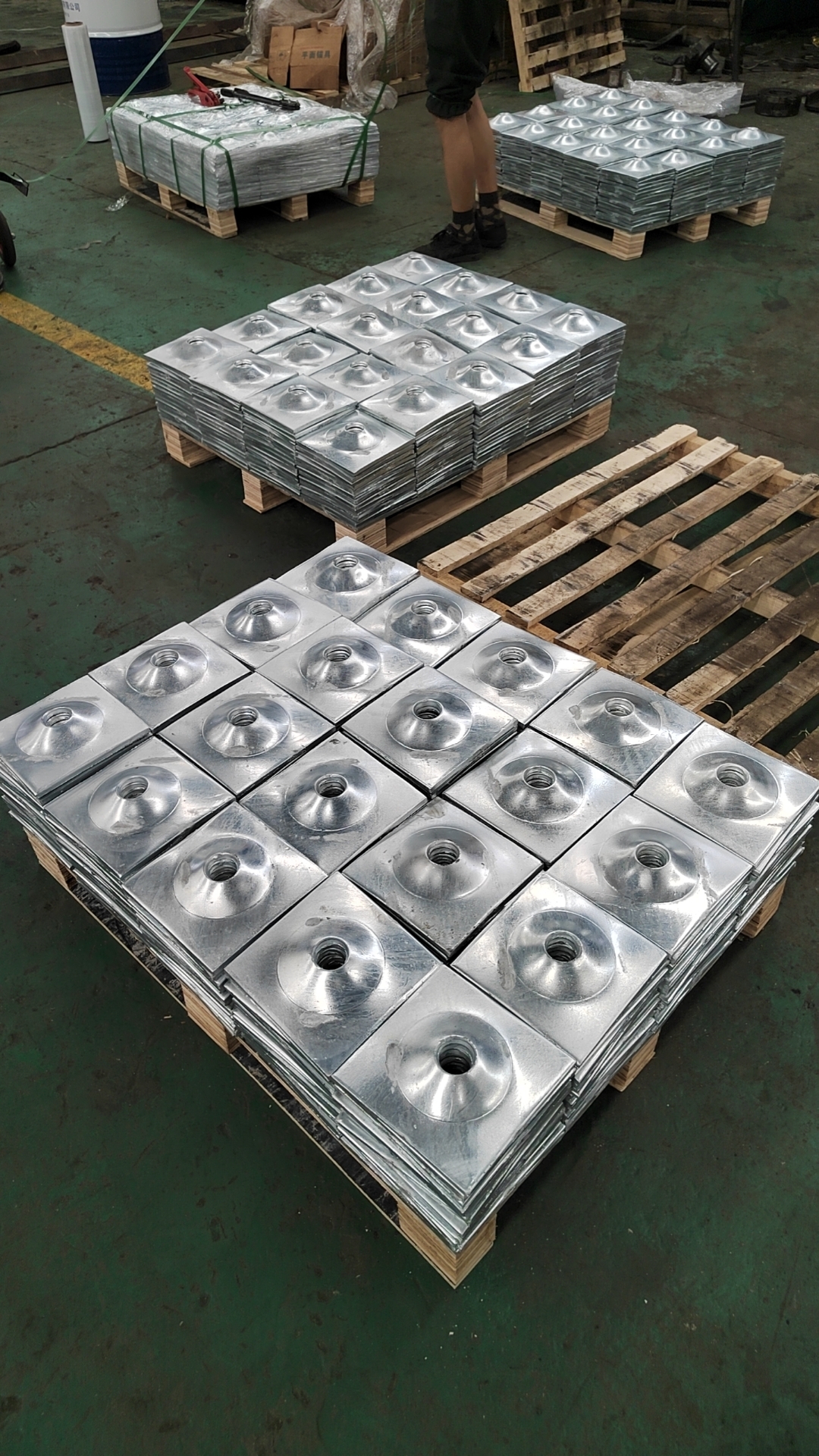

Long term supply of PSB500 precision rolled threaded steel, PSB830 precision rolled threaded steel, PSB930 precision rolled threaded steel, PSB1080 precision rolled threaded steel, PSB1200 precision rolled threaded steel, precision rolled threaded nuts, precision rolled threaded pads, spiral bars, precision rolled threaded steel connectors, affordable prices, high-quality services, convenient transportation, dedicated to serving you.
**Typical Applications**
- Post-tensioning systems in PC bridges
- Anchorages for geotechnical engineering
- Connection elements in steel-concrete composite structures
- Reinforcement couplers for modular construction
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
