PSB930 THREADED STEEL BAR BARRA HELICOIDAL PRODUCERS from Guotai Metal

Post tensioning is a technique for reinforcing concrete. Post-tensioning tendons, which are prestressing steel cables inside plastic ducts or sleeves, are positioned in the forms before the concrete is placed. Afterwards, once the concrete has gained strength but before the service loads are applied, the cables are pulled tight, or tensioned, and anchored against the outer edges of the concrete.

Post-tensioning is a form of prestressing. Prestressing simply means that the steel is stressed (pulled or tensioned) before the concrete has to support the service loads. Most precast, prestressed concrete is actually pre-tensioned-the steel is pulled before the concrete is poured. Post-tensioned concrete means that the concrete is poured and then the tension is applied-but it is still stressed before the loads are applied so it is still prestressed.

Previous: 1230Mpa Screw Thread Steel Bar for post tensioning

Next: D20mm 500MPA All threaded rebar for construction

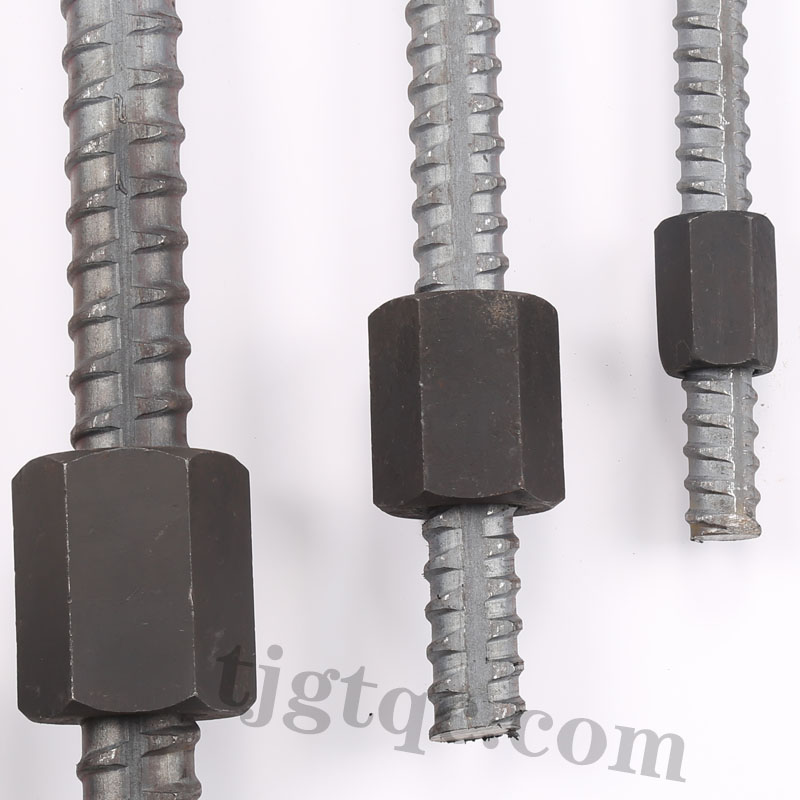

continuous threaded bar

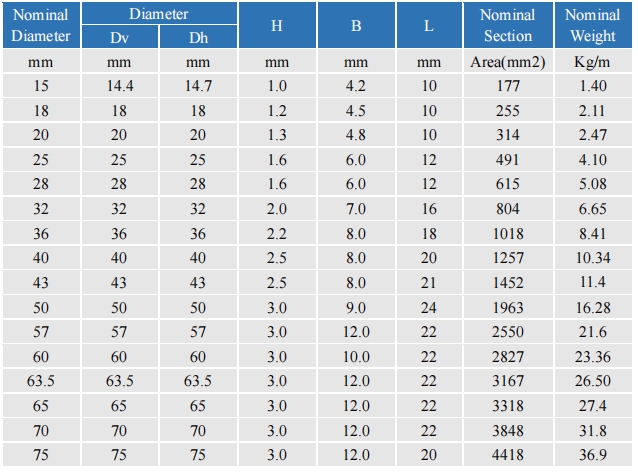

Nominal Diameter	Diameter		H	B	L	Nominal Section	Nominal Weight
Nominal Diameter	Dv	Dh	H	B	L	Nominal Section	Nominal Weight
mm	mm	mm	mm	mm	mm	mm2	kg/m
15	15	15	1.0	4.5	10	176	1.47
18	18	18	1.0	4.0	10	254.5	2.11
20	20	20	1.3	4.8	10	314	2.47
25	25	25	1.6	6.0	12	490.9	4.10
32	32	32	2.0	7.0	16	804.2	6.65
36	36	36	2.5	8.0	18	1018	8.41
40	40	40	3.0	8.0	20	1256.6	10.34
50	50	50	3.0	9.0	24	1963.5	16.28
60	60	60	3.0	10.0	22	2827	23.26
63.5	63	63.5	3.0	12.0	22	3167	26.20
65	65	65	3.0	12.0	22	3318	27.470
70	70	70	3.0	12.0	22	3848	31.8
75	75	75	3.0	12.0	22	4418	36.9

Grade500/630	NominalDia.	CrossSection	YieldStrength	TensileStrength	YieldLoad	UltimateLoad	Elongation	NominalWeight
	mm	mm2	>=Mpa	>=Mpa	KN	KN	A/%	KG/m
	20	314	500	630	157	198	10	2.47
	25	491	500	630	246	309	10	4.1
	28	615	500	630	308	387	10	4.83
