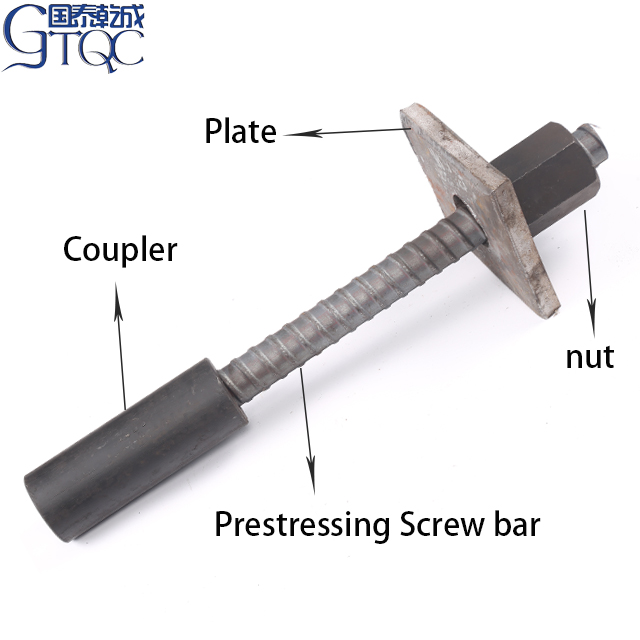

PSB930 post tensioning bar full thread bar anchor bar
System Description:
Post-tensioning systems are used to strengthen existing structures, such as bridges and concrete structures, that are experiencing increased loads or are aging. These systems can compensate for deficiencies in the original design and improve the infrastructure's longevity
Fully Threaded Bar - can be cut and coupled at any point.
Low Relaxation Steel - minimum relaxation during service life.
Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.
| Grade | PSB500，PSB830，PSB930，PSB1080 |
| Diameter | 15mm, 20mm, 25mm, 28mm, 32mm, 36mm, 40mm, 50mm, 57mm, 63.5mm, 65mm, 75mm |

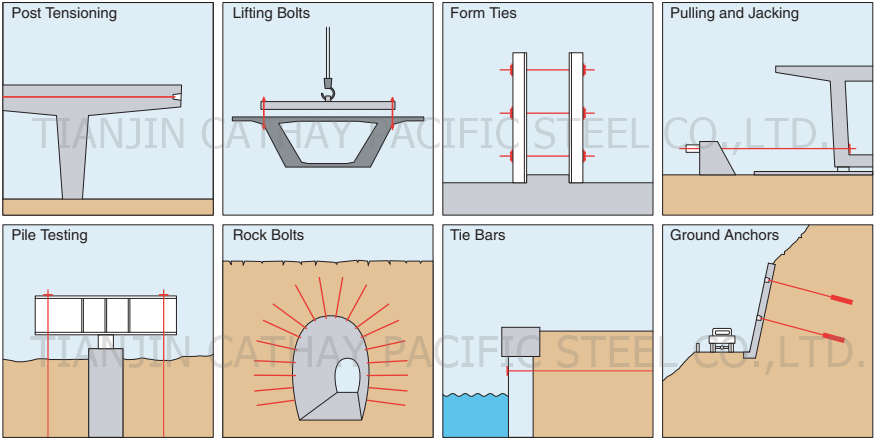

Applications:
Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.
1. Strengthening of Structures
2. Longitudinal Resistance
3. Prefabricated Tendon Systems
Wire-based tendon systems provide solutions with minimal intervention to the existing structure. They are often used for strengthening projects where the structure requires additional support without significant modification
4. Shear Resistance
5. Bonded Post-Tensioning Systems
6. Stress Bar Post- Tensioning
7. Anchorages for Post-Tensioning
1. Different grade: 500/630, 830/1030, 930/1080, 1080/1230
2. Diameter range: 15mm, 20mm, 25mm, 32mm, 36mm, 40mm, 50mm, 63.5mm, 75mm
3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction
Stock with fastest dlievery
Contact Information
Wendy Lee
Tianjin Cathy Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
WhatsApp: +86-176 1227 5091
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
