That has a positive and progressive attitude to customer's interest, our organization consistently improves our products quality to satisfy the demands of shoppers and further focuses on safety, reliability, environmental specifications, and innovation of Post Tensioned Steel Bar , Post Tension Steel Bar , 50mm Prestressing Screw Bar , We are expecting to cooperate with you on the basis of mutual benefits and common development. We will never disappoint you.
PriceList for Pt Bar And Nut - S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay Detail:

S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar

Tianjin Guotai Qiancheng Iron & Steel Co., Ltd. specializes in the export of Screw thread steel bars for the prestressing of concrete and anchorages including HRB500, PSB500, PSB785,PSB830, PSB930, PSB1080 of 15mm, 16mm, 18mm 20mm, 22mm, 25mm, 28mm, 32mm, 36mm,40mm, 50mm, 75mm and other specifications, Left hand screw thread steel bars, Right hand screw thread steel bars and Deformed steel bars of HRB500E, HRB500 , HRB400E , HRB335 grades.

——-Screw Thread Steel Bar, Φ15-Φ75, Grade HRB&PSB
——–Nut, M15-M75, material: 45# 40Cr (Flat Nut, Spherical Nut, Dome Nut)
——–Coupler, material: 45#, 40Cr
——–Plate, material: Q235
——–PC Strand Wire
——-Hollow Anchor Rod

Post tension bars are designed to create a compressive force within the concrete that helps to counteract the tensile forces that the structure will experience over time. This can improve the integrity and longevity of the concrete structure, making it more resistant to cracking, corrosion, and other forms of damage.

Post tension bars are typically made from high-strength steel and are placed inside precast concrete sections or cast-in-place concrete forms. The bars are then tensioned to a precise level using hydraulic jacks, creating a strong, durable structure that can withstand the test of time.

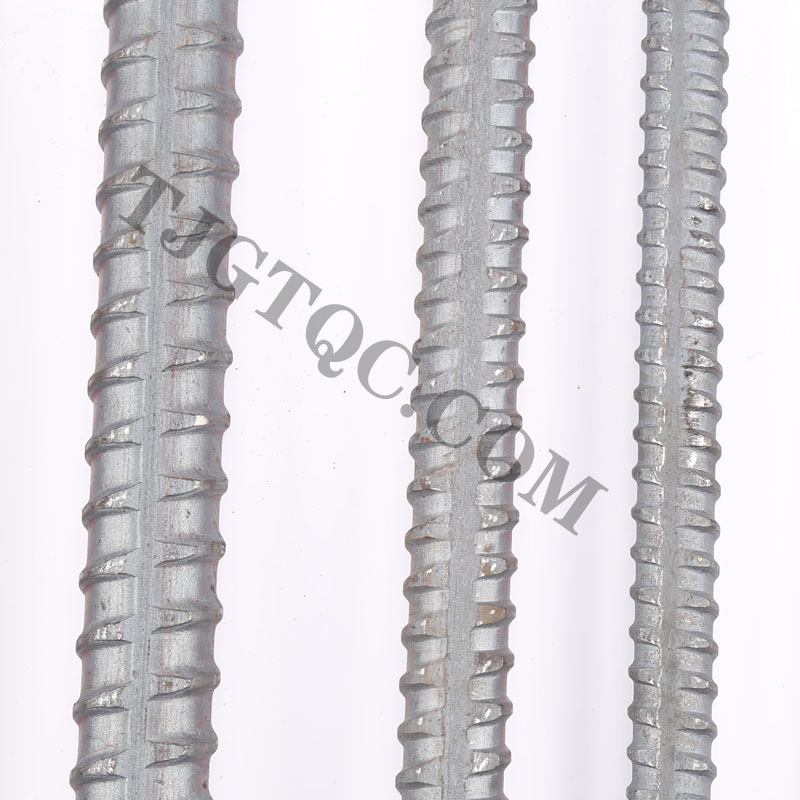

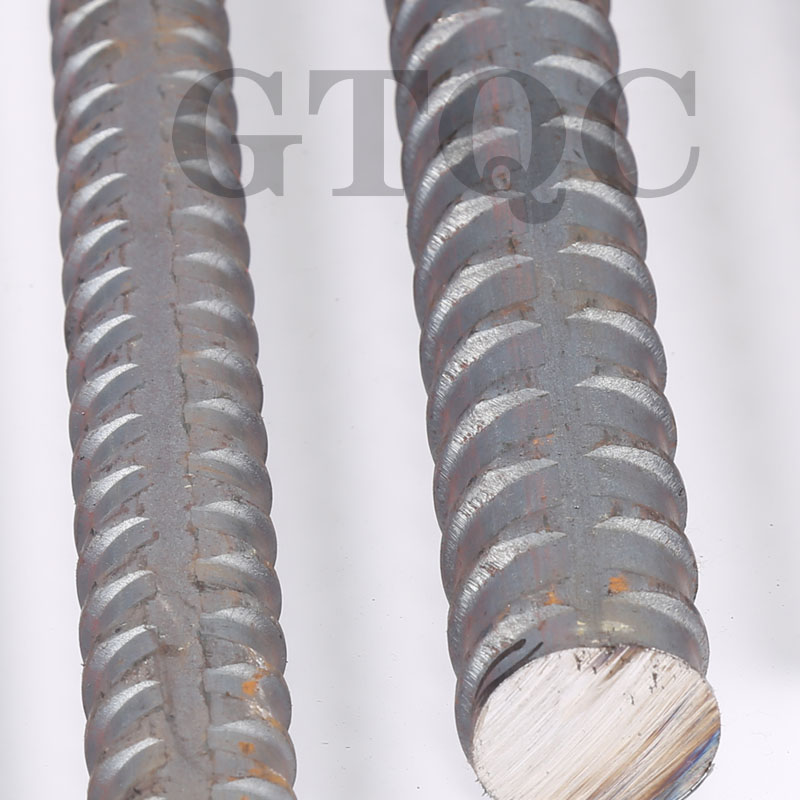

threadbar

threadbar-1

System Description:

The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on user’s demand subject to the maximum length of 18m.

The screw thread steel bar

Fully Threaded Bar - can be cut and coupled at any point.

Low Relaxation Steel - minimum relaxation during service life.

Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.

Grade PSB500,PSB830,PSB930,PSB1080
Diameter 15mm,0mm,25mm,32mm,36mm,40mm,50mm

Applications:

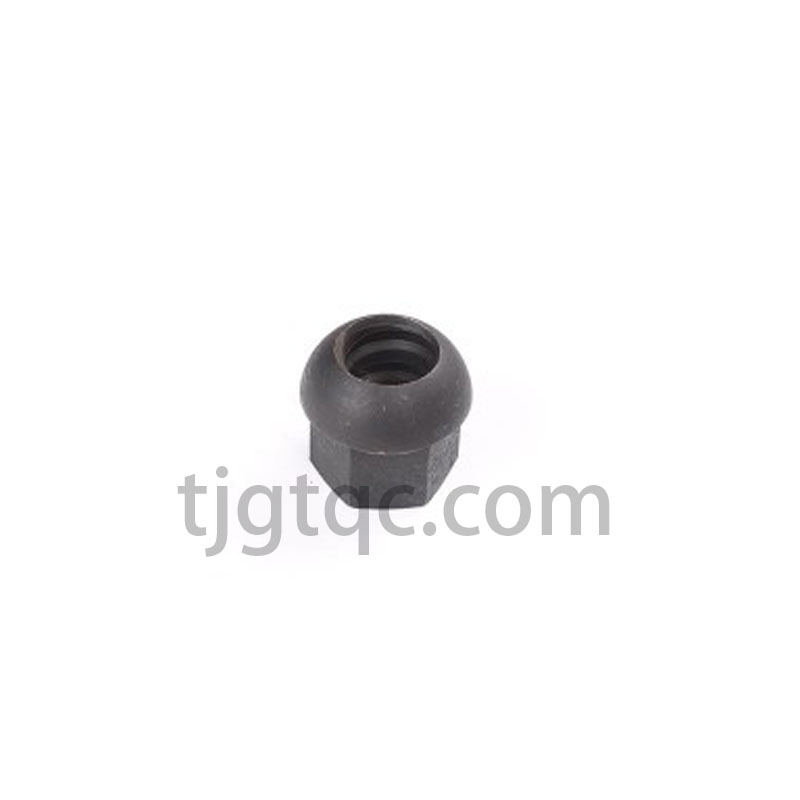

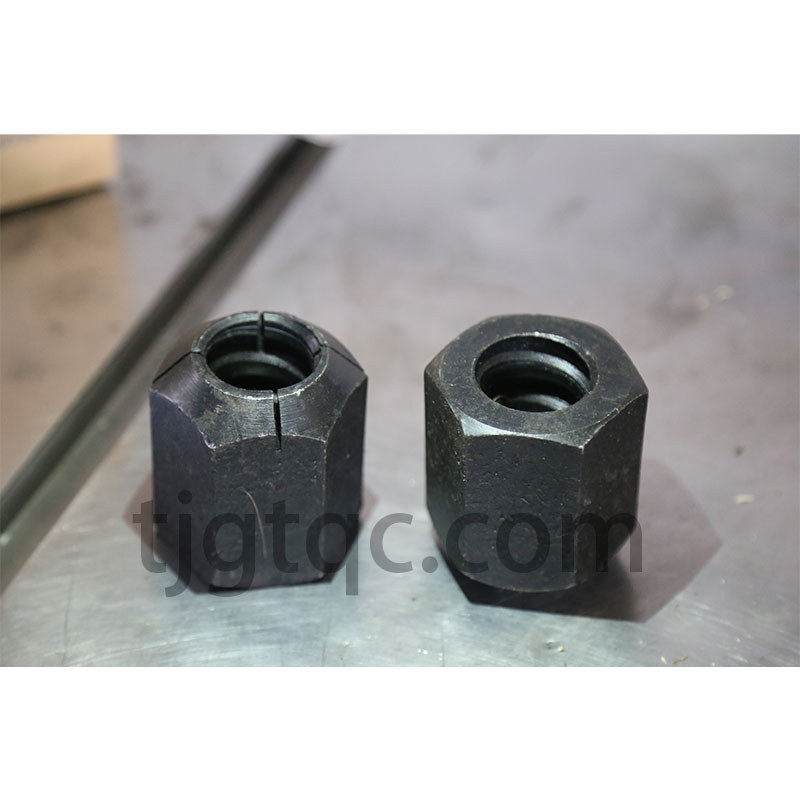

nut

nut

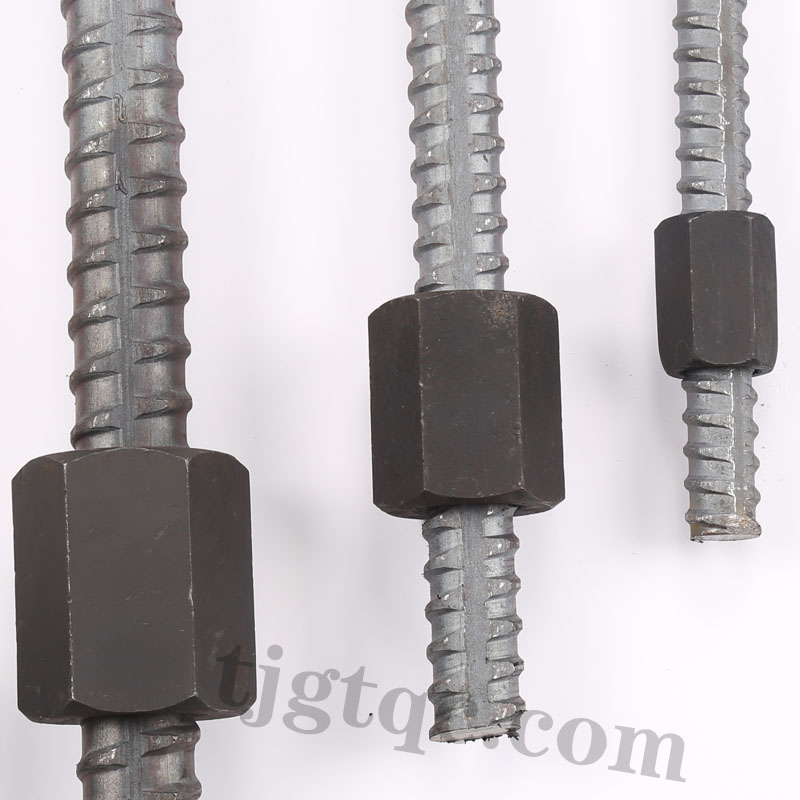

coupler

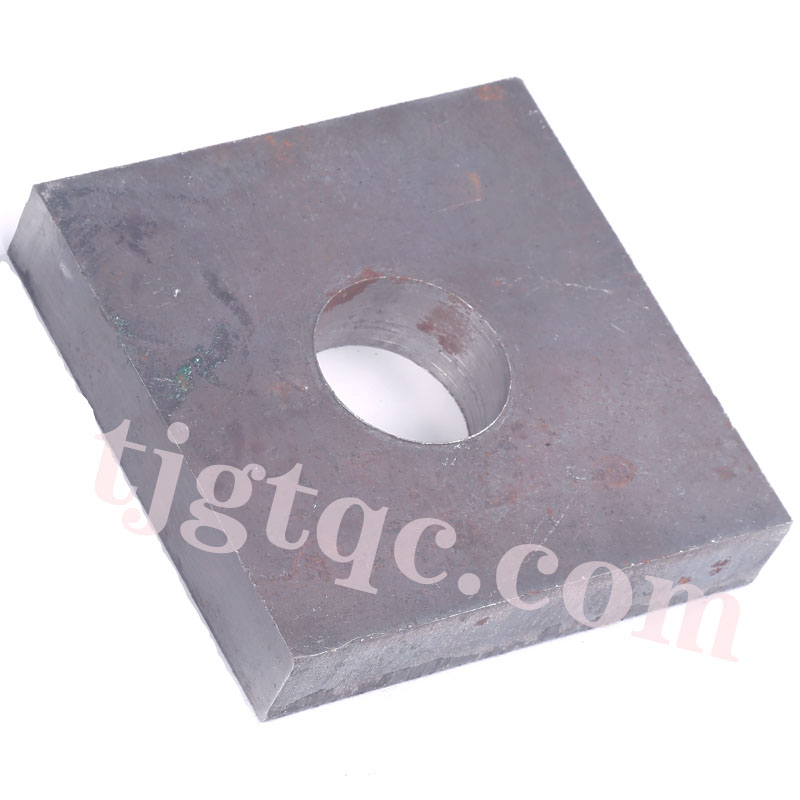

plate

Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.

Specification

rebar prices steel rebar PS500 screw-thread steel Hot rolled ribbed steel bar G500 standard

1. Different grade:  500/630, 830/1030, 930/1080, 1080/1230

2. Diameter range: 15mm, 20mm, 25mm, 32mm, 36mm, 40mm, 50mm, 63.5mm, 75mm

3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction

Fully Thread Bar

Stock with fastest dlievery

Contact Information

Wendy Lee

Tianjin Cathay Pacific Steel Co.,Ltd

Email: tjgtqc@tjgtqc.com

WhatsApp: 0086-176 1227 5091


Product detail pictures:

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures

PriceList for Pt Bar And Nut -
 S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay detail pictures


Related Product Guide:

We emphasize progress and introduce new merchandise into the market each and every year for PriceList for Pt Bar And Nut - S670 Thread Bar used as rock bolt,Grade 670 continuous thread bar,B500 fully thread bar – Cathay, The product will supply to all over the world, such as: Ukraine , Cannes , Washington , We'll initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. If you are interested in any of our products and solutions or would like to discuss a custom order, make sure you feel free to contact us. We've been looking forward to forming successful business relationships with new clients around the world in the near future.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
