Prestressing Steel Bar or Threaded Steel Bars for Bridge Construction
System Description:
The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on user’s demand subject to the maximum length of 18m.
The thread bars used in the system are made from high-strength steel and are bonded to the surrounding concrete using a specialized grout. This creates a strong and durable connection between the thread bars and the concrete, which helps to distribute loads more efficiently and reduce the risk of cracking and other types of damage.
Fully Threaded Bar - can be cut and coupled at any point.
Low Relaxation Steel - minimum relaxation during service life.
Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.
| Grade | PSB500，PSB830，PSB930，PSB1080 |
| Diameter | 15mm,0mm,25mm,32mm,36mm,40mm,50mm |
Applications:
Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.
- Pre-cast connections in buildings
- Temporary and permanent bracing
- Specialist engineering projects
- Pre-stressed beams and columns
1. Different grade: 500/630, 830/1030, 930/1080, 1080/1230
2. Diameter range: 15mm, 20mm, 25mm, 28mm, 32mm, 36mm, 40mm, 47mm, 50mm, 57mm, 63.5mm, 65mm, 75mm
3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction
Stock with fastest dlievery
Contact Information
Wendy Lee
Tianjin Cathay Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
WhatsApp: +86-176 1227 5091

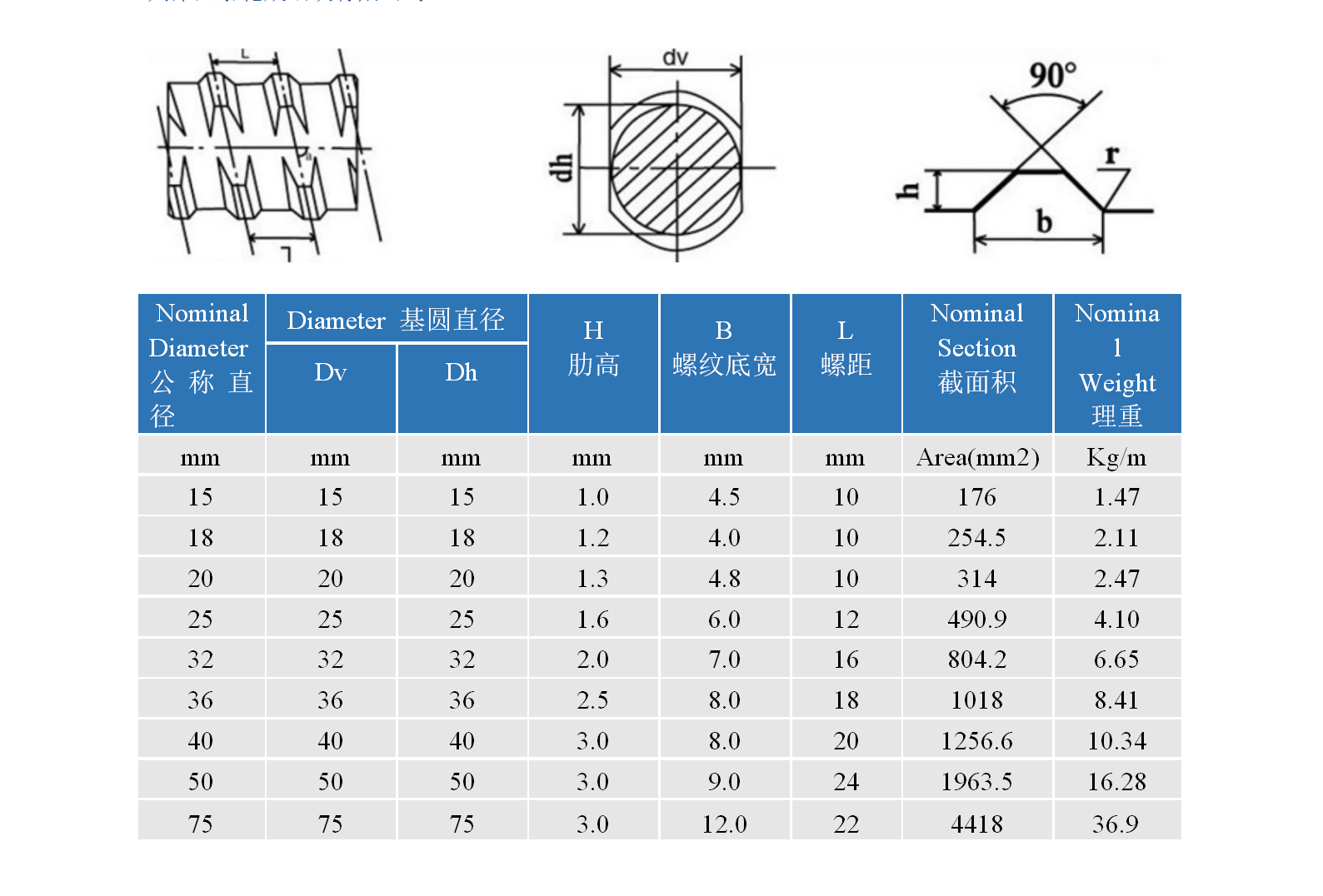

| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
