System Description:

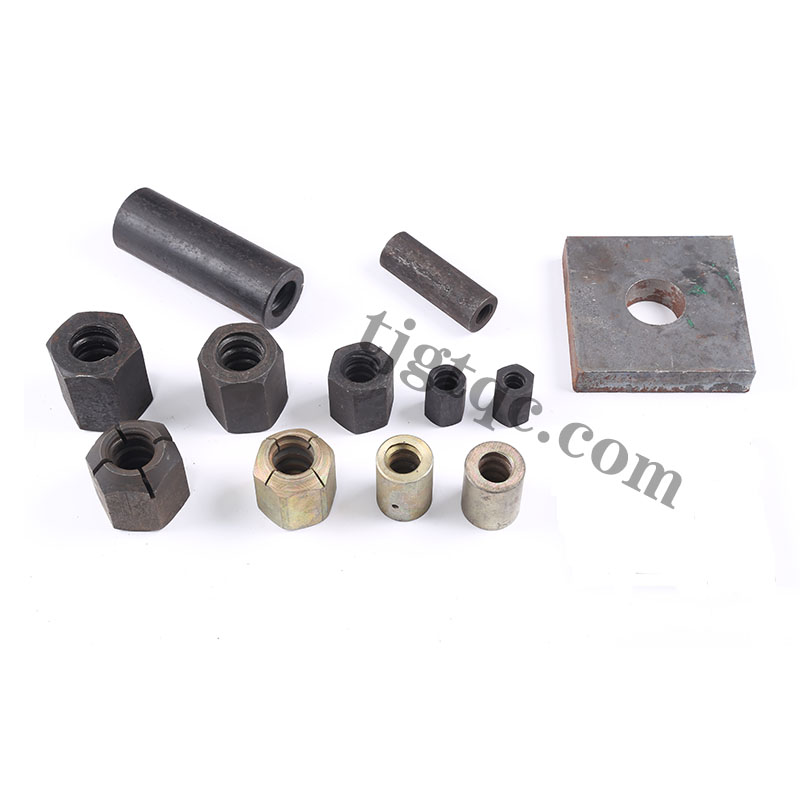

Prestressed threaded bar (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete components..

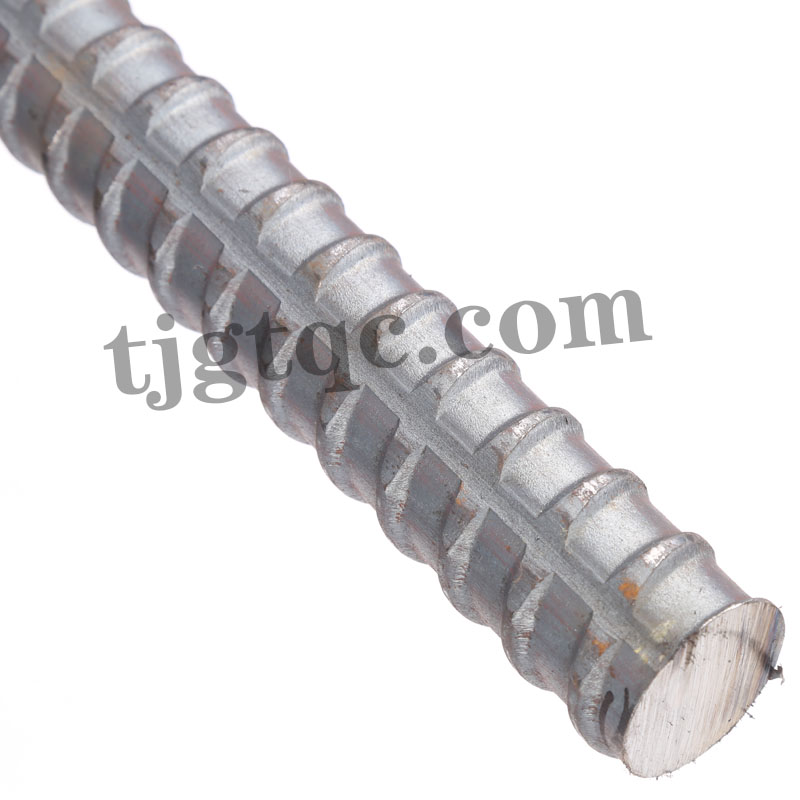

Fully Threaded Bar - can be cut and coupled at any point.
Low Relaxation Steel - minimum relaxation during service life.
Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.
| Grade | PSB500，PSB830，PSB930，PSB1080 |
| Diameter | 15mm,0mm,25mm,32mm,36mm,40mm,50mm |
Applications:
The thread bars used in the system are made from high-strength steel and are bonded to the surrounding concrete using a specialized grout. This creates a strong and durable connection between the thread bars and the concrete, which helps to distribute loads more efficiently and reduce the risk of cracking and other types of damage
1. Strengthening of Structures
2. Longitudinal Resistance
3. Prefabricated Tendon Systems
4. Shear Resistance
5. Bonded Post-Tensioning Systems
6. Stress Bar Post- Tensioning
Stress bar post-tensioning systems are a cost-effective solution for applying post-tensioning forces on short straight tendons without any profiles. They are used for a range of applications, including pre-cast connections in buildings, temporary and permanent bracing, and pre-stressed beams and columns
7. Anchorages for Post-Tensioning
Anchorages are crucial for fixing the ends of the tendons in post-tensioning systems. They are cast into the concrete and transfer the entire load from the strands into the concrete, preventing the concrete from splitting due to high local bursting forces

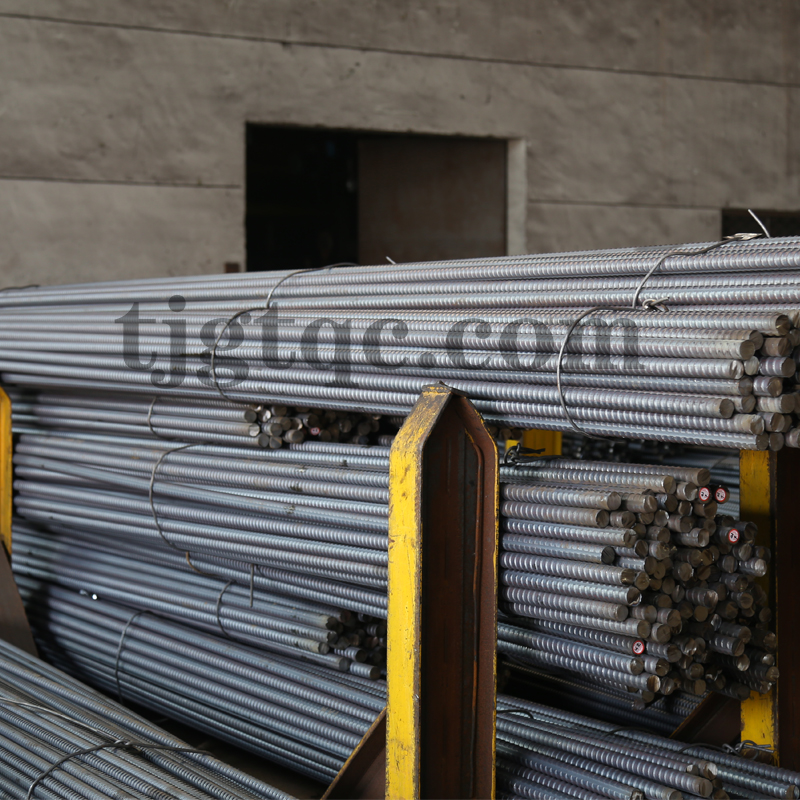

Stock with fastest dlievery
Contact Information
Wendy Lee
Tianjin Cathy Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
WhatsApp: +86-176 1227 5091
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
