OEM/ODM Supplier Thread Twisted Steel Bar - Screw Threaded Steel Bar – Cathay Detail:

Screw Threaded Steel Bar

System Description:

The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on user’s demand subject to the maximum length of 18m.

The screw thread steel b

Fully Threaded Bar - can be cut and coupled at any point.

Low Relaxation Steel - minimum relaxation during service life.

Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.

Grade	PSB500，PSB830，PSB930，PSB1080
Diameter	15mm,0mm,25mm,32mm,36mm,40mm,50mm

Applications:

Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.

Stock with fastest dlievery

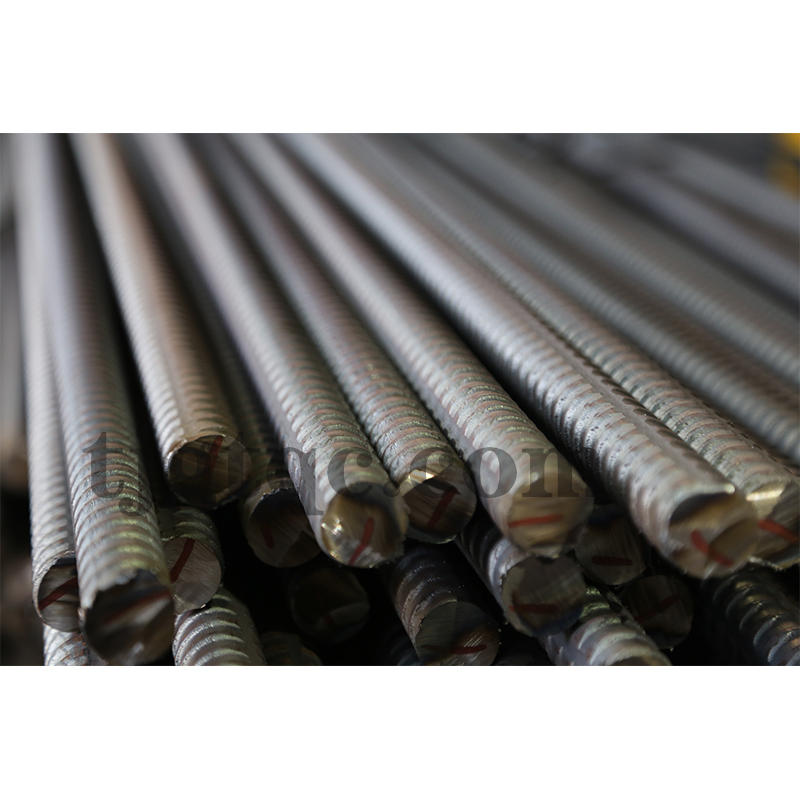

Product detail pictures:

Related Product Guide:

To continuously increase the administration process by virtue of the rule of "sincerely, good religion and excellent are the base of company development", we commonly absorb the essence of linked goods internationally, and continually build new solutions to fulfill the requires of shoppers for OEM/ODM Supplier Thread Twisted Steel Bar - Screw Threaded Steel Bar – Cathay, The product will supply to all over the world, such as: Swansea , Hyderabad , Israel , Our items have national accreditation requirements for qualified, high quality products, affordable value, was welcomed by people today all over the world. Our goods will continue to enhance within the order and look forward to cooperation with you, Should any of these products be of interest to you, please letus know. We are going to be content to offer you a quotation up on receipt of your detailed needs.

continuous threaded bar

Nominal Diameter	Diameter		H	B	L	Nominal Section	Nominal Weight
Nominal Diameter	Dv	Dh	H	B	L	Nominal Section	Nominal Weight
mm	mm	mm	mm	mm	mm	mm2	kg/m
15	15	15	1.0	4.5	10	176	1.47
18	18	18	1.0	4.0	10	254.5	2.11
20	20	20	1.3	4.8	10	314	2.47
25	25	25	1.6	6.0	12	490.9	4.10
32	32	32	2.0	7.0	16	804.2	6.65
36	36	36	2.5	8.0	18	1018	8.41
40	40	40	3.0	8.0	20	1256.6	10.34
50	50	50	3.0	9.0	24	1963.5	16.28
60	60	60	3.0	10.0	22	2827	23.26
63.5	63	63.5	3.0	12.0	22	3167	26.20
65	65	65	3.0	12.0	22	3318	27.470
70	70	70	3.0	12.0	22	3848	31.8
75	75	75	3.0	12.0	22	4418	36.9

Grade500/630	NominalDia.	CrossSection	YieldStrength	TensileStrength	YieldLoad	UltimateLoad	Elongation	NominalWeight
	mm	mm2	>=Mpa	>=Mpa	KN	KN	A/%	KG/m
	20	314	500	630	157	198	10	2.47
	25	491	500	630	246	309	10	4.1
	28	615	500	630	308	387	10	4.83
