Manufacturer for Galvanized Steel Strand - 15.2mm 9.53mm 21.6mm 7 Wire Low Relaxation Pc Strand – Cathay Detail:

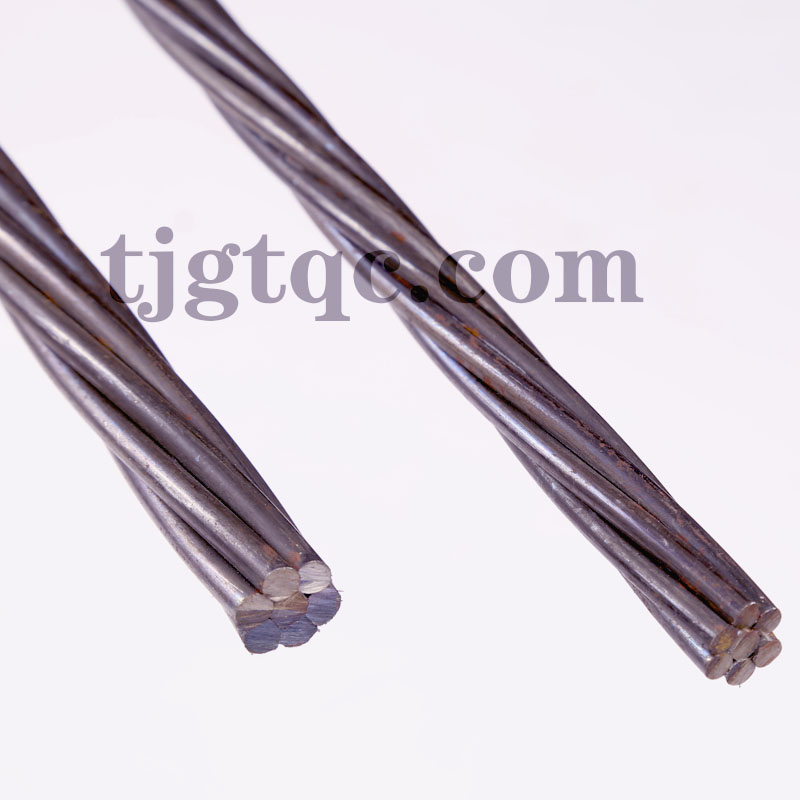

15.2mm 9.53mm 21.6mm 7 Wire Low Relaxation Pc Strand

PC strand consists of wires spun together in the same direction and with the same lay length. The PC strand product contains 2-wire, 3-wire and 7-wire strands. Low relaxation PC strand can be used for either prestressing or post-tensioning of concrete.

Feature: Low relaxation, High Tensile Strength.

Construction: 1*2,1*3 and 1*7 wires

Application : PC Strand is mainly used for prestressed concrete structural reinforcement, such as span railway and highway bridges, crane beam, ground anchoring project, multi-storey industrial plants and other.

Product Description

Prestressed concrete strand (PC strand) is a high-grade, low-relaxation, 7-strand steel cord used in the reinforcement and strengthening of pre-stressed concrete structures. Because it is used in critical applications, this strand consists of high-carbon steel with a high tensile strength, manufactured to the highest quality standards to ensure its durability. PC strand is available in several different thicknesses, ranging between .25 inches and .6 inches in diameter.

COMMON USES FOR PC STRAND

Commercial buildings

High-rise buildings

Multi-level parking garages

Stadiums

Hangars

Silos

Railway sleepers

Aqueducts Highway and railway viaducts

Suspension bridges

Product name	9.53mm Pc Strand Prestressed Concrete Strand
Model Size	1×3–8.6mm,10.8/11.1mm,
	1×7–7.94mm,9.3mm,9.53mm,12.7mm,12.9mm,15.2mm,15.24mm, 15.7mm,17.8mm,18.9mm, 21.6mm
	1×9–21.8mm
Standard	ASTMA416, BS5896, EN10138-3, AS/NZS4672,GB/T5224, KS7002, ISO6934-4, JISG3536.
Material	High carbon steel 82B and 77B
Tensile Strength	1470Mpa ~ 1960Mpa
Dia.(mm)	8.0mm–21.6mm
Surface treatment	Heat treatment, Polishing, shot blasting,Painting, Electro-plating, Chemical Plating,
Packing	Inner Diameter: 760mm Outside Diameter:1400mm Max Coil’s width: 760mm Coil’s Weight: 2500~3500 kg We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of thecoil has 3 wraps.There are two wooden pallets on the bottom of the coil. The coil is eye tosky in the container.

Packaging & Shipping

Standard Export Bundle packing or as per customer’s requirement.

_20180531150955

Contact Information

Jolin Wang / Sales Director

Tianjin Cathay Pacific Steel Co.,Ltd

Email / Skype: jolin(at)tjgtqc.com

Phone: 008617622687129 (Whatsapp / Wechat)

Tel: 0086 22 8461 2322

Product detail pictures:

Related Product Guide:

We strive for excellence, service the customers", hopes to become the best cooperation team and dominator enterprise for personnel, suppliers and customers, realizes value share and continuous promotion for Manufacturer for Galvanized Steel Strand - 15.2mm 9.53mm 21.6mm 7 Wire Low Relaxation Pc Strand – Cathay, The product will supply to all over the world, such as: Thailand , Canada , Johor , Welcome to visit our company, factory and our showroom where displays various products that will meet your expectation. Meanwhile, it is convenient to visit our website, and our sales staff will try their best to provide you the best service. Please contact us if you need more information. Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation.

continuous threaded bar

Nominal Diameter	Diameter		H	B	L	Nominal Section	Nominal Weight
Nominal Diameter	Dv	Dh	H	B	L	Nominal Section	Nominal Weight
mm	mm	mm	mm	mm	mm	mm2	kg/m
15	15	15	1.0	4.5	10	176	1.47
18	18	18	1.0	4.0	10	254.5	2.11
20	20	20	1.3	4.8	10	314	2.47
25	25	25	1.6	6.0	12	490.9	4.10
32	32	32	2.0	7.0	16	804.2	6.65
36	36	36	2.5	8.0	18	1018	8.41
40	40	40	3.0	8.0	20	1256.6	10.34
50	50	50	3.0	9.0	24	1963.5	16.28
60	60	60	3.0	10.0	22	2827	23.26
63.5	63	63.5	3.0	12.0	22	3167	26.20
65	65	65	3.0	12.0	22	3318	27.470
70	70	70	3.0	12.0	22	3848	31.8
75	75	75	3.0	12.0	22	4418	36.9

Grade500/630	NominalDia.	CrossSection	YieldStrength	TensileStrength	YieldLoad	UltimateLoad	Elongation	NominalWeight
	mm	mm2	>=Mpa	>=Mpa	KN	KN	A/%	KG/m
	20	314	500	630	157	198	10	2.47
	25	491	500	630	246	309	10	4.1
	28	615	500	630	308	387	10	4.83
