Manufactur standard Hot Rolled Reinforcing Steel Bars - Hot Dipped Galvanized PT Bar PSB950 PSB1080 – Cathay Detail:

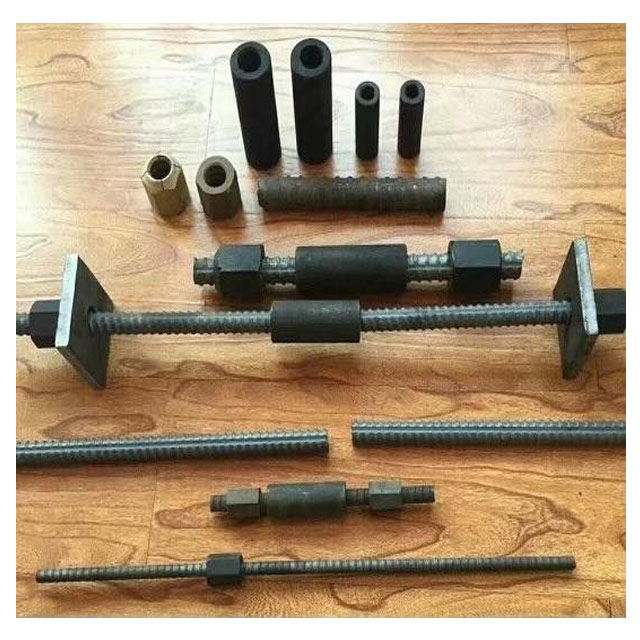

full set for post tensioning bar D32

Grade 950 PT bar/Dia.40 Post tensioning Bar
Grade No. 500/670,785/980,830/1030,930/1080,1080/1230,1200/1330
Standard GB,ASTM
Diameter 15mm to 75mm
Length 6m,12m or cutting any length
Surface Black,Hot Dip Galvanized,Epoxy Coating
Accessories Hex Nut,Coupler,Plate

Application: Grade 950 PT bar/Post tensioning Bar normally use for soil nailing,rock bolts,formwork,ground anchors,bridge,highway,railway etc

pt bar application.jpg

Fast Delivery for Post Tesoining Bar

shipping delivery.jpg

We have all series of Prestressing Steel

related products.jpg

Contact Information:

Sophia Wang

Marketing | Tianjin Cathay Pacific Steel Co.,Ltd.

*Geotechnical *Reinforcing *Post-Tensioning *Ground Anchors *Tunneling *Mining

Nob No.: 0086 185 2252 9216

Email: sophia at tjgtqc.com

Website: www.tjgtqc.com

Add: B10-1-201,, Kexin Industry Area,Zhongguan Village,, Beichen District,, Tianjin 300400,China



Product detail pictures:

Manufactur standard Hot Rolled Reinforcing Steel Bars - Hot Dipped Galvanized PT Bar PSB950 PSB1080 – Cathay detail pictures

Related Product Guide:
We constantly think and practice corresponding to the change of circumstance, and grow up. We aim at the achievement of a richer mind and body along with the living for Manufactur standard Hot Rolled Reinforcing Steel Bars - Hot Dipped Galvanized PT Bar PSB950 PSB1080 – Cathay, The product will supply to all over the world, such as: Austria , Czech Republic , Mozambique , We've been proud to supply our products and solutions to every auto fan all around the world with our flexible, fast efficient services and strictest quality control standard which has always approved and praised by customers.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
