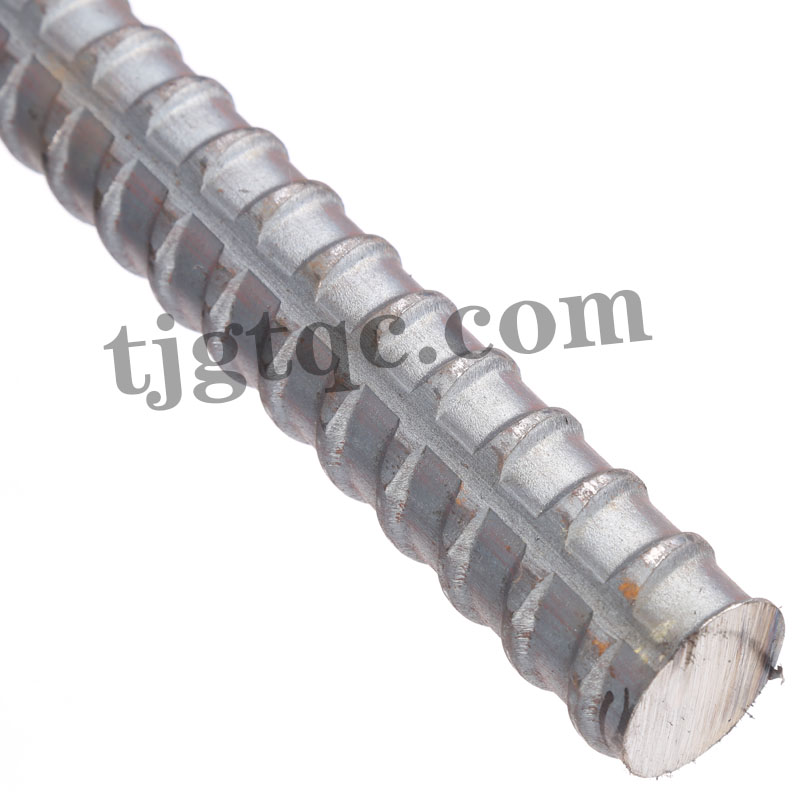

M40 Fully Threaded Bar used for bridge construction
A threaded bar can be used as a ground anchor by drilling a hole into the ground and inserting the bar deep enough to provide sufficient stability for whatever is being anchored. This could be anything from a small tent or canopy to a large sign or billboard. The bar is typically secured in place with concrete, soil, or other materials that provide enough friction to prevent it from being pulled out of the ground by force. Depending on the weight and size of the structure being anchored, multiple bars may be needed to ensure the necessary strength and stability.
Tianjin Guotai Qiancheng Iron & Steel Co., Ltd. specializes in the export of Screw thread steel bars for the prestressing of concrete and anchorages including HRB500, PSB500, PSB785,PSB830, PSB930, PSB1080 of 15mm, 16mm, 18mm 20mm, 22mm, 25mm, 28mm, 32mm, 36mm,40mm, 50mm, 75mm and other specifications, Left hand screw thread steel bars, Right hand screw thread steel bars and Deformed steel bars of HRB500E, HRB500 , HRB400E , HRB335 grades.
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
