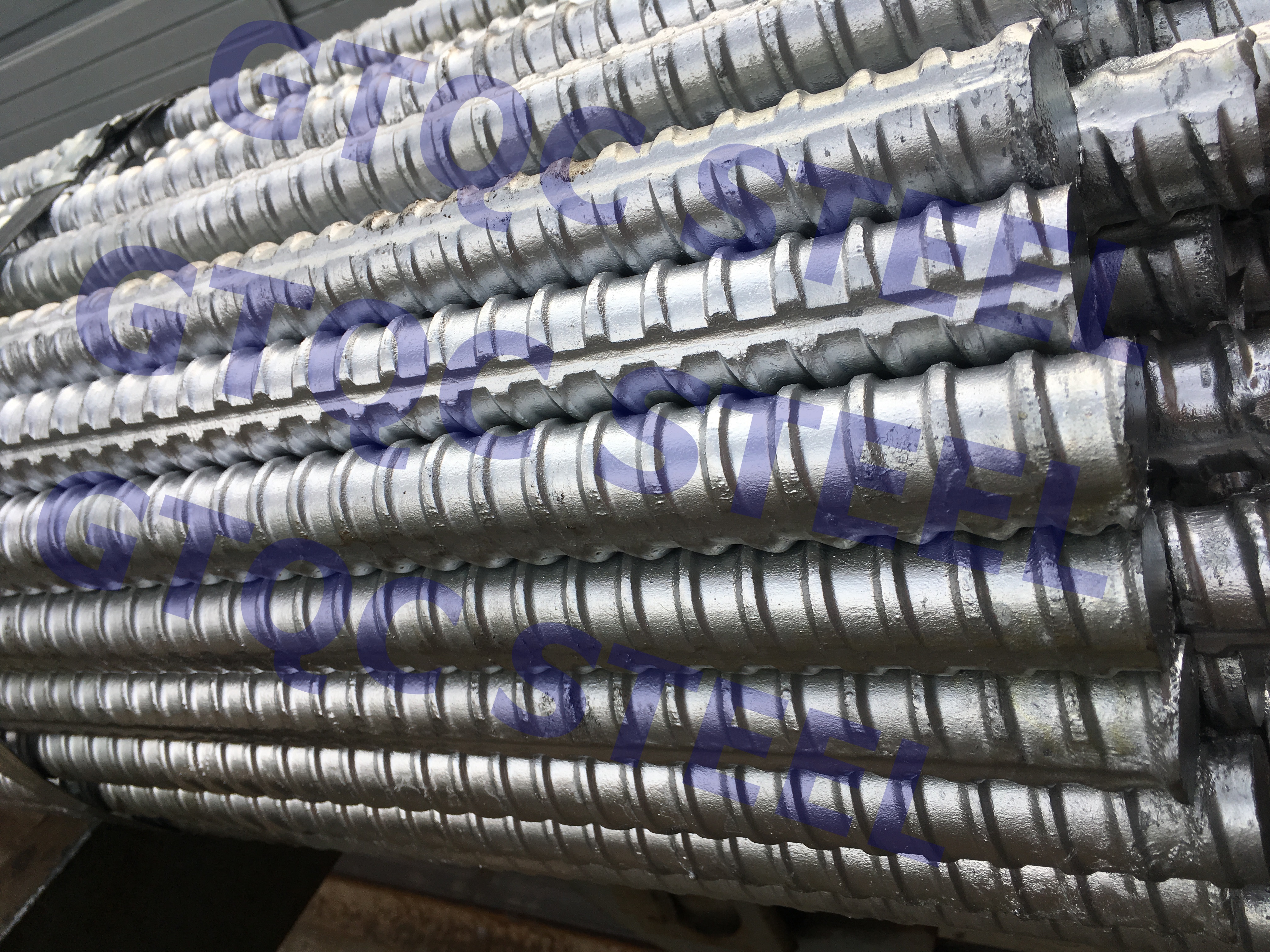

Hot Dipped Galvanized Fully Threaded Steel Bar 25mm 32mm

Hot Dipped Galvanized Fully Threaded Steel Bar 25mm 32mm Featured Image
  • Hot Dipped Galvanized Fully Threaded Steel Bar 25mm 32mm

Short Description:


  • Diameter: 15-75mm
  • Grade: 500-1080
    • Download as PDF

    Product Detail

    Parameter

    Mechanical Properties

    Product Tags

    galvanized full threaded bars



















    Hot Dipped Galvanized Fully Threaded Steel Bar 25mm 32mm


  • Previous:
  • Next:

    • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
