grade 1030/1050 steel thread bars for bridge

Short Description:


  • Type: Steel Bar
  • Length: 12m or customized
  • Product Detail

    Parameter

    Mechanical Properties

    Product Tags

    grade 1030/1050 steel thread bars for bridge

    应用场景

    A threaded bar can be used as a ground anchor by drilling a hole into the ground and inserting the bar deep enough to provide sufficient stability for whatever is being anchored. This could be anything from a small tent or canopy to a large sign or billboard. The bar is typically secured in place with concrete, soil, or other materials that provide enough friction to prevent it from being pulled out of the ground by force. Depending on the weight and size of the structure being anchored, multiple bars may be needed to ensure the necessary strength and stability.

    screw bar21

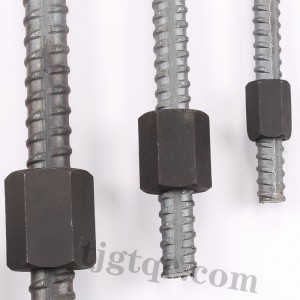

    threadbar

    A post tension bar is a strong metal rod that is used in the construction of concrete structures such as bridges, buildings, and parking garages. Its advantage over traditional reinforcement is that it creates a compressive force within the concrete, which helps to counteract the tensile forces that the structure will experience over time. This can improve the strength, durability, and integrity of the concrete structure, making it more resistant to cracking, corrosion, and other forms of damage. Additionally, the use of post tension bars can help reduce the amount of material needed for a structure, making it lighter and more cost-effective.

    Steel Bar

    nut

    Tianjin Guotai Qiancheng Iron & Steel Co., Ltd., based in the largest steel trading market in China, Tianjin, as a direct agent of Tiantie Zhaer Steel which is one of the largest steel manufacturers in China specializes in the export of Screw-thread steel bars for the prestressing of concrete and anchorages including HRB500, PSB500, PSB830, PSB930, PSB1080 of 15mm\ 18mm\20mm\25mm\28mm\32mm\36mm\40mm\50mm\63.5mm\75mm and other specifications, Left hand screw thread steel bars, Right hand screw thread steel bars and Deformed steel bars of HRB500E, HRB500 , HRB400E , HRB335 grades. Besides, we also supply construction and building use steel products including Stainless steel pipes,sheets and coil, Aluminum ingots and billets, Steel angle bars, I beam, H beam, T beam, PPGI and other steel products from major steel mills in China.

    You International Trade Co., Ltd

    Address

    8787 Winchester Blvd.

    Campbell, CA 95008

    E-mail

    sales@loremipsum.com

    support@loremipsum.com

    Phone

    Sales: 1-800-694-7466

    Support: 1-800-800-2775

    Hours

    Monday-Friday: 9am to 6pm

    Saturday, Sunday: Closed

    WANT TO WORK WITH US?


  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
