Fully Threaded Steel Bar PSB930/1080

Fully Threaded Steel Bar PSB930/1080 Featured Image
  • Fully Threaded Steel Bar PSB930/1080

Short Description:


Download as PDF

Product Detail

Parameter

Mechanical Properties

Product Tags

Fully Threaded Steel Bar PSB930/1080

The continuous external thread is made by hot rolling method. The shape of thread bar is shown as following figure. The main diameter is 15 mm to 75 mm and the strength is 500MPa to  1080MPa.

Fully Threaded Steel Bars / Post-Tensioning Bars

Grade: PSB930

Length: 6m,9m, and 12m or Cutting sizes as requests.

Application: High-speed Railway, bridge, concrete anchoring system, form work panels,  industrial facilities, precast-construction, water treatment plants

continuous threaded bar

NominalDiameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9

Mechanical Properties

Grade930/1080 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
25 491 930 1080 457 530 6 4.1
32 804 930 1080 748 868 6 6.65
36 1018 930 1080 947 1099 6 8.41
40 1257 930 1080 1169 1358 6 10.34
50 1964 930 1080 1827 2121 6 16.28

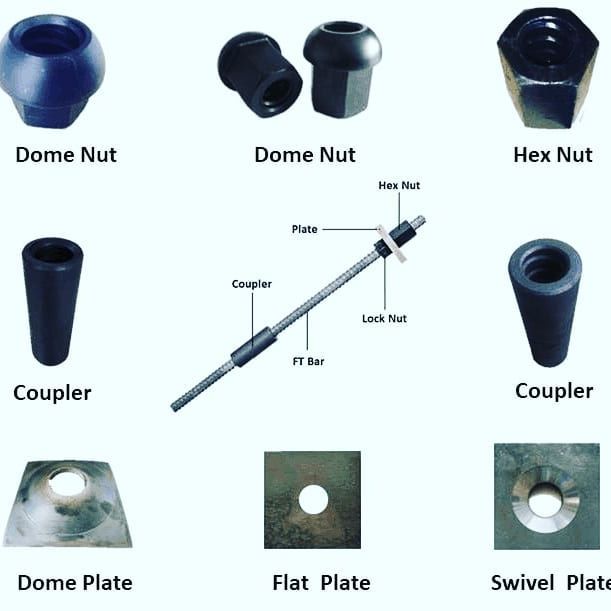

49276826_2216972178514912_1110184843581511338_n

  • Previous:
  • Next:

    • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
