Fully Thread Screw Steel Bar PSB930-50 Or bent anchor bolts for concrete

**Precision Hot-Rolled Threaded Steel Bars (PSB Series)**

*Engineered for Structural Excellence*

D75 thread bar3

**Product Overview**

Our precision hot-rolled threaded steel bars are cold-formed through advanced thermo-mechanical processing, achieving superior dimensional accuracy with continuous thread profiles. Compliant with ASTM A615/A615M, BS 4449, and GB/T 20065 standards.



**Key Specifications**

- Diameter Range: Φ20mm – Φ75mm

- Strength Grades: PSB830 / PSB930 / PSB1080

- Tolerance Control: ±0.5mm diameter, ±1° thread angle

- Surface Treatment: Natural mill finish or anti-corrosion coating



**Performance Advantages**

1. **High Tensile Strength**

Yield strength up to 1080MPa, elongation ≥6% (per EN 10002-1)
2. **Precision Thread Geometry**

CNC-machined thread patterns with 1.5-3.0mm pitch depth for optimal bond performance
3. **Weldability & Machinability**

Controlled carbon equivalent (Ceq ≤0.55) enables arc welding without pre-heating
4. **Fatigue Resistance**

Passed 2 million cycle fatigue test at 60% of ultimate tensile stress

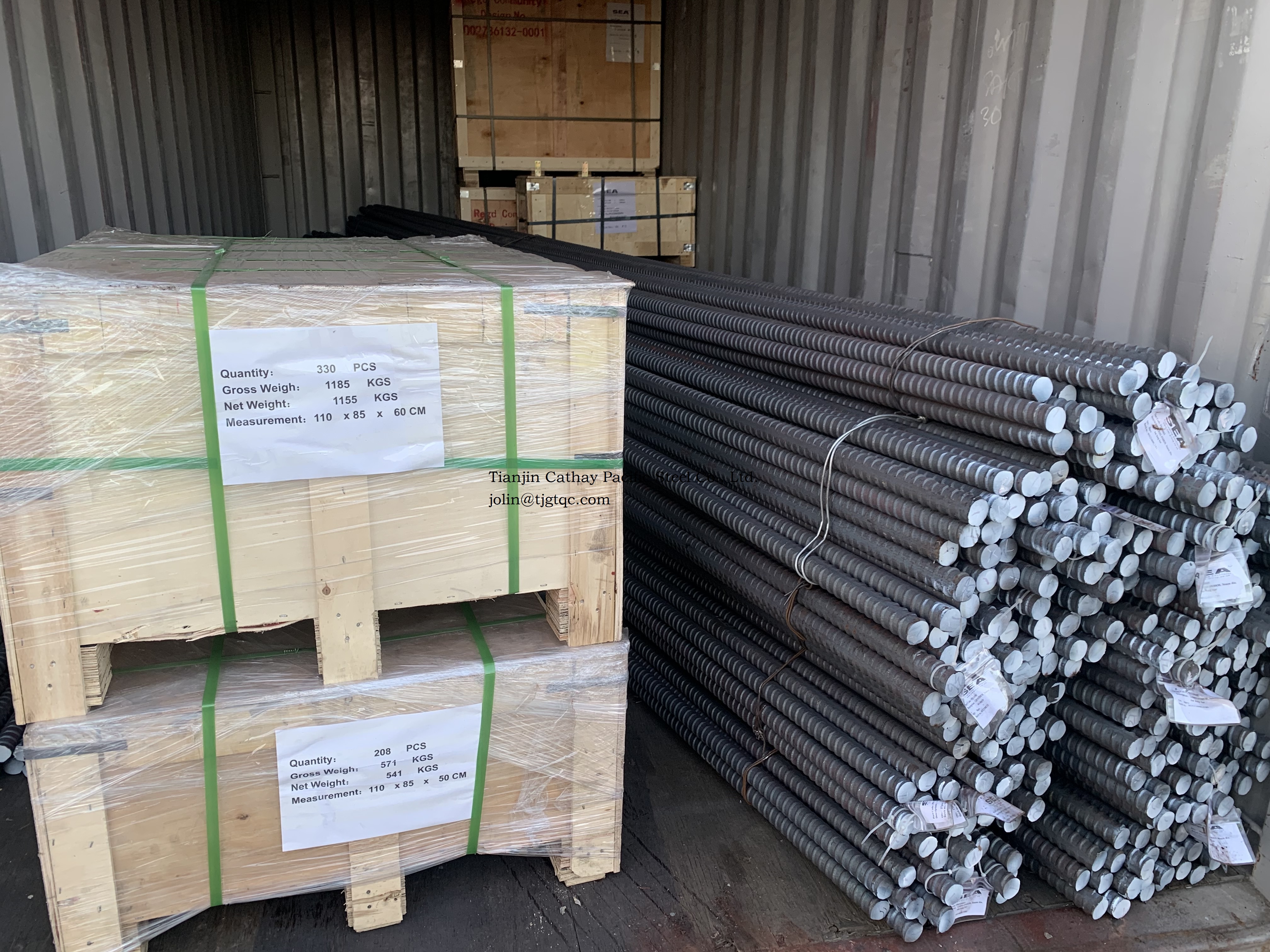

container

**Typical Applications**

- Post-tensioning systems in PC bridges

- Anchorages for geotechnical engineering

- Connection elements in steel-concrete composite structures

- Reinforcement couplers for modular construction



**Certifications**

• ISO 15630-3:2018 Steel for prestressing

• CE Marking (CPR 305/2011)

• Third-party tested by SGS/BV/TÜV



**Packaging Options**

- Standard: 9m/12m fixed length with protective end caps

- Custom: Coiled supply available for diameters ≤20mm

- Palletized shipment with waterproof wrapping



**Technical Support**

Our metallurgical engineers provide:

• Stress-strain curve analysis

• Thread engagement calculations

- On-site torque tension guidance



Contact our global sales team for ASTM-certified mill test certificates and project-specific solutions.







  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
