FLAT SMOOTH BAR ALLOY TENSION BAR SCREW THREAD BAR
In addition, post-tensioning rod systems provide engineers with greater flexibility in bridge design and construction. Traditional construction methods often require joints to be placed regularly to accommodate expansion and contraction caused by temperature changes. However, the use of a rear tension rod system reduces the occurrence of cracks and minimizes the need for joints, resulting in a smoother and safer ride for commuters. This uninterrupted surface also reduces maintenance effort and costs.
In addition, post-tension rod systems enable a more efficient and faster construction process, minimizing traffic disruptions and shortening project durations. With the ability to prestress bridge sections off-site, builders can significantly reduce on-site construction time and logistical challenges. This advantage is particularly important in densely populated areas where traffic congestion is a major problem.

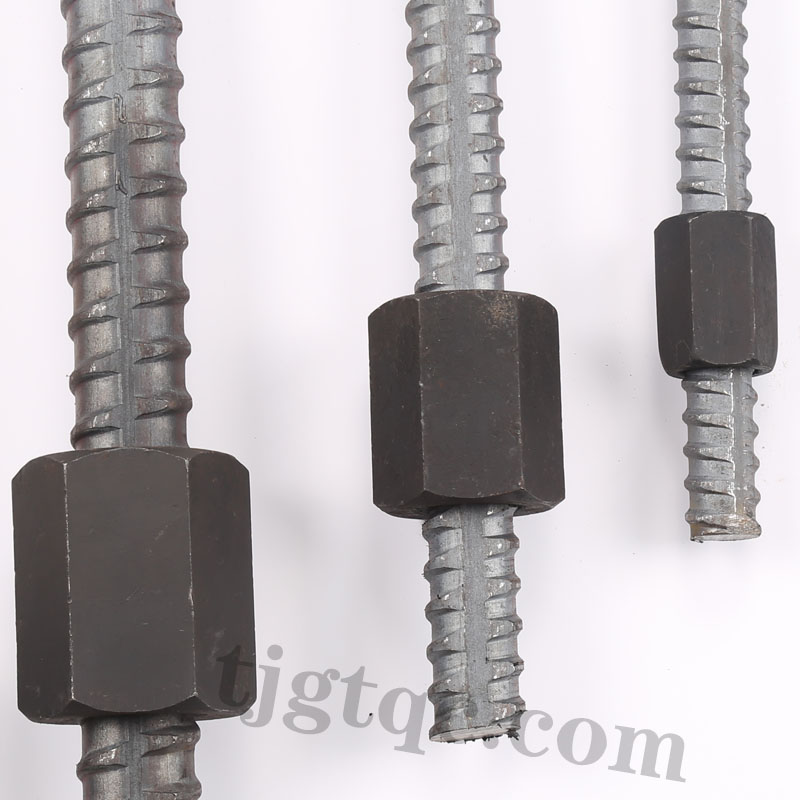

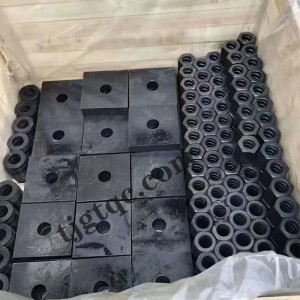

Tianjin Guotai Qiancheng Iron & Steel Co., Ltd. specializes in the export of Screw thread steel bars for the prestressing of concrete and anchorages including HRB500, PSB500, PSB785,PSB830, PSB930, PSB1080 of 15mm, 16mm, 18mm 20mm, 22mm, 25mm, 28mm, 32mm, 36mm,40mm, 50mm, 75mm and other specifications, Left hand screw thread steel bars, Right hand screw thread steel bars and Deformed steel bars of HRB500E, HRB500 , HRB400E , HRB335 grades.
Contact Information
Wendy Lee
Tianjin Cathay Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
WhatsApp: 0086-176 1227 509
Address
8787 Winchester Blvd.
Campbell, CA 95008
sales@loremipsum.com
support@loremipsum.com
Phone
Sales: 1-800-694-7466
Support: 1-800-800-2775
Hours
Monday-Friday: 9am to 6pm
Saturday, Sunday: Closed
WANT TO WORK WITH US?
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
