Post Tensioning Bar
Product Introduction
Solid Threaded Bar/Post Tensioning Bar Dia32mm, PSB1080 for Railway (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.
Solid Threaded Bar/Post Tensioning Bar Dia32mm, PSB1080 for Railway are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.
The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ⌀15mm-⌀50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.
|
Nominal Diameter |
Diameter |
H |
B |
L |
Nominal Section |
Nominal Weight |
|
|
Dv |
Dh |
||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
Area(mm2) |
Kg/m |
|
15 |
15 |
15 |
1.0 |
4.5 |
10 |
176 |
1.47 |
|
18 |
18 |
18 |
1.2 |
4.0 |
10 |
254.5 |
2.11 |
|
20 |
20 |
20 |
1.3 |
4.8 |
10 |
314 |
2.47 |
|
25 |
25 |
25 |
1.6 |
6.0 |
12 |
490.9 |
4.10 |
|
32 |
32 |
32 |
2.0 |
7.0 |
16 |
804.2 |
6.65 |
|
36 |
36 |
36 |
2.5 |
8.0 |
18 |
1018 |
8.41 |
|
40 |
40 |
40 |
3.0 |
8.0 |
20 |
1256.6 |
10.34 |
|
50 |
50 |
50 |
3.0 |
9.0 |
24 |
1963.5 |
16.28 |
|
60 |
60 |
60 |
3.0 |
10.0 |
22 |
2827 |
23.36 |
|
63.5 |
63 |
63.5 |
3.0 |
12.0 |
22 |
3167 |
26.20 |
|
65 |
65 |
65 |
3.0 |
12.0 |
22 |
3318 |
27.4 |
|
70 |
70 |
70 |
3.0 |
12.0 |
22 |
3848 |
31.8 |
|
75 |
75 |
75 |
3.0 |
12.0 |
22 |
4418 |
36.9 |
|
Grade 1080/1230 |
Norminal Dia. |
Cross Section |
Yield Strength |
Tensile Strength |
Yield Load |
Ultimate Load |
Elongation |
Liner Weight |
|
(mm) |
(Area) |
≥(Mpa) |
≥(Mpa) |
(KN) |
(KN) |
(A/%) |
(kg/m) |
|
|
25 |
491 |
1080 |
1230 |
408 |
506 |
6 |
4.1 |
|
|
32 |
804 |
1080 |
1230 |
667 |
828 |
6 |
6.65 |
|
|
36 |
1018 |
1080 |
1230 |
845 |
1049 |
6 |
8.41 |
|
|
40 |
1257 |
1080 |
1230 |
1043 |
1295 |
6 |
10.34 |
|
|
50 |
1964 |
1080 |
1230 |
2121 |
2416 |
6 |
16.28 |
|
|
63.5 |
3167 |
1080 |
1230 |
3420 |
3895 |
6 |
26.2 |
|
|
75 |
4418 |
1080 |
1230 | 4771 | 5434 | 6 | 36.9 |
Company Introduction
Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.
Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.
The Projects We Participated in:
1. Hongkong- Zhuhai-Macao Bridge
2. Mongolian Shangri-la Hotel
3. The Uzbek Railway Engineering
4. Cambodia San Secondary Hydropower Station
5. Brunei PMB Cross- Sea Bridge
6. Malaysia DASH CB4 Expressway Project
7. Papua New Guinea Hilton Hotel
8. Bangladesh Airport Projects
Application: Bridge, Tunneling, Mining, Soil Nailing, Slope Stabilizing,
Contact Information:
Wendy Lee
Tianjin Cathay Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
Mobile/WhatsApp/WeChat :+86-176 1227 5091
Add: B10-1-2, Kexin Industrial Area, Beichen District, Tianjin, China

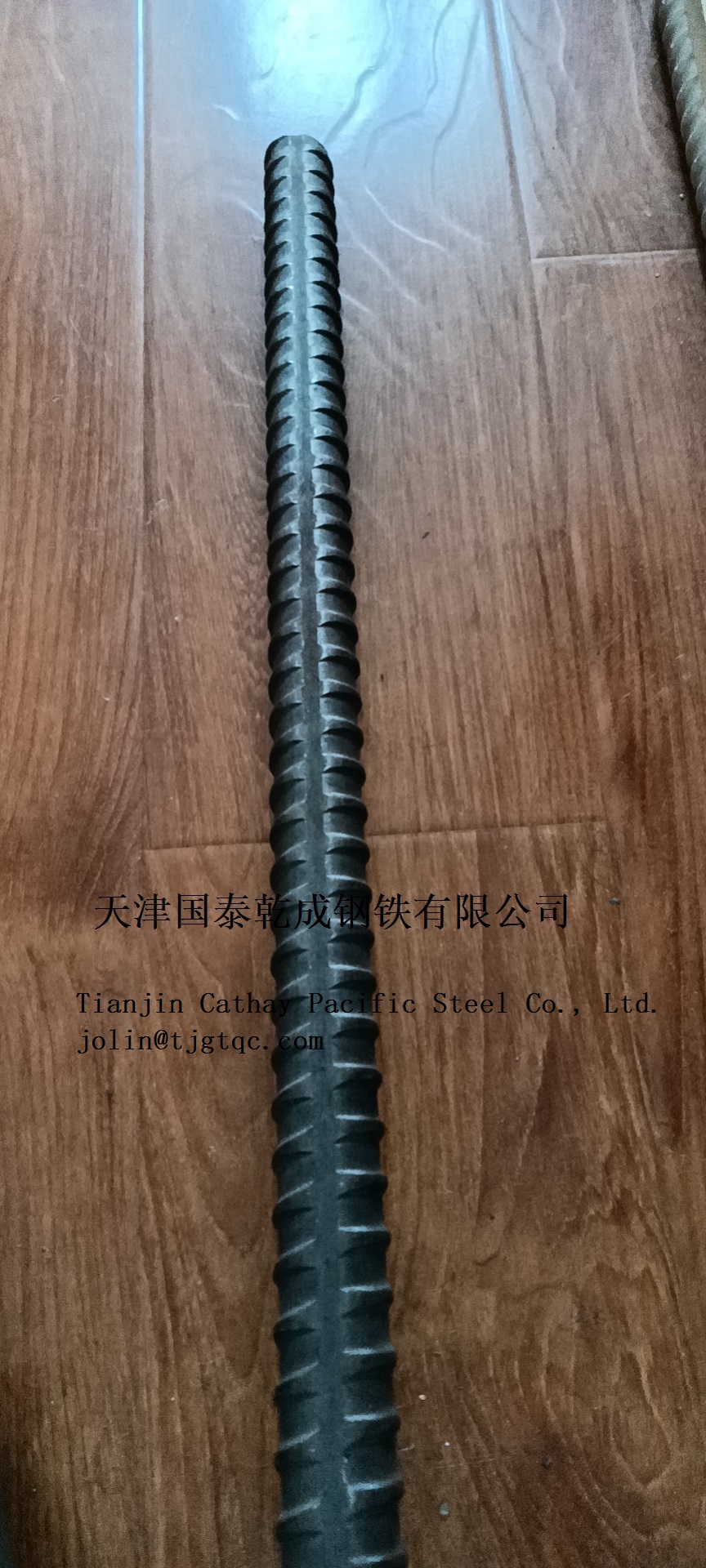

Product detail pictures:
Related Product Guide:
Our business sticks for the basic principle of "Quality could be the life with the firm, and track record will be the soul of it" for Fixed Competitive Price Steel Bar For Prestressed Concrete - Post Tensioning Bar – Cathay, The product will supply to all over the world, such as: Uzbekistan , Colombia , Mongolia , Our expert engineering team will generally be prepared to serve you for consultation and feedback. We are able to also offer you with free of charge samples to meet your requirements. Best efforts will likely be produced to provide you the best service and merchandise. When you are keen on our business and products, please speak to us by sending us emails or call us quickly. In an effort to know our products and company extra, you may come to our factory to view it. We will generally welcome guests from all over the world to our business to create business relations with us. Please feel cost-free to speak to us for small business and we believe we'll share the best trading experience with all our merchants.
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
