Fixed Competitive Price Steel Bar For Prestressed Concrete - 50mm Fully Thread Bar – Cathay Detail:

50mm Fully Thread Bar

The continuous external thread is made by hot extrolling method. The shape of thread bar is shown as following figure. The main diameter is 15mm to 75mm and the strength is 500MPa to  1080MPa.

Fully Threaded Steel Bars / Post-Tensioning Bars

Grade: PSB830

Length: 6m,9m, and 12m or Cutting sizes as requests.

Application: High-speed Railway, bridge, concrete anchoring system, formwork panels,  industrial facilities, precast-construction, water treatment plants

50 51

10

Product detail pictures:

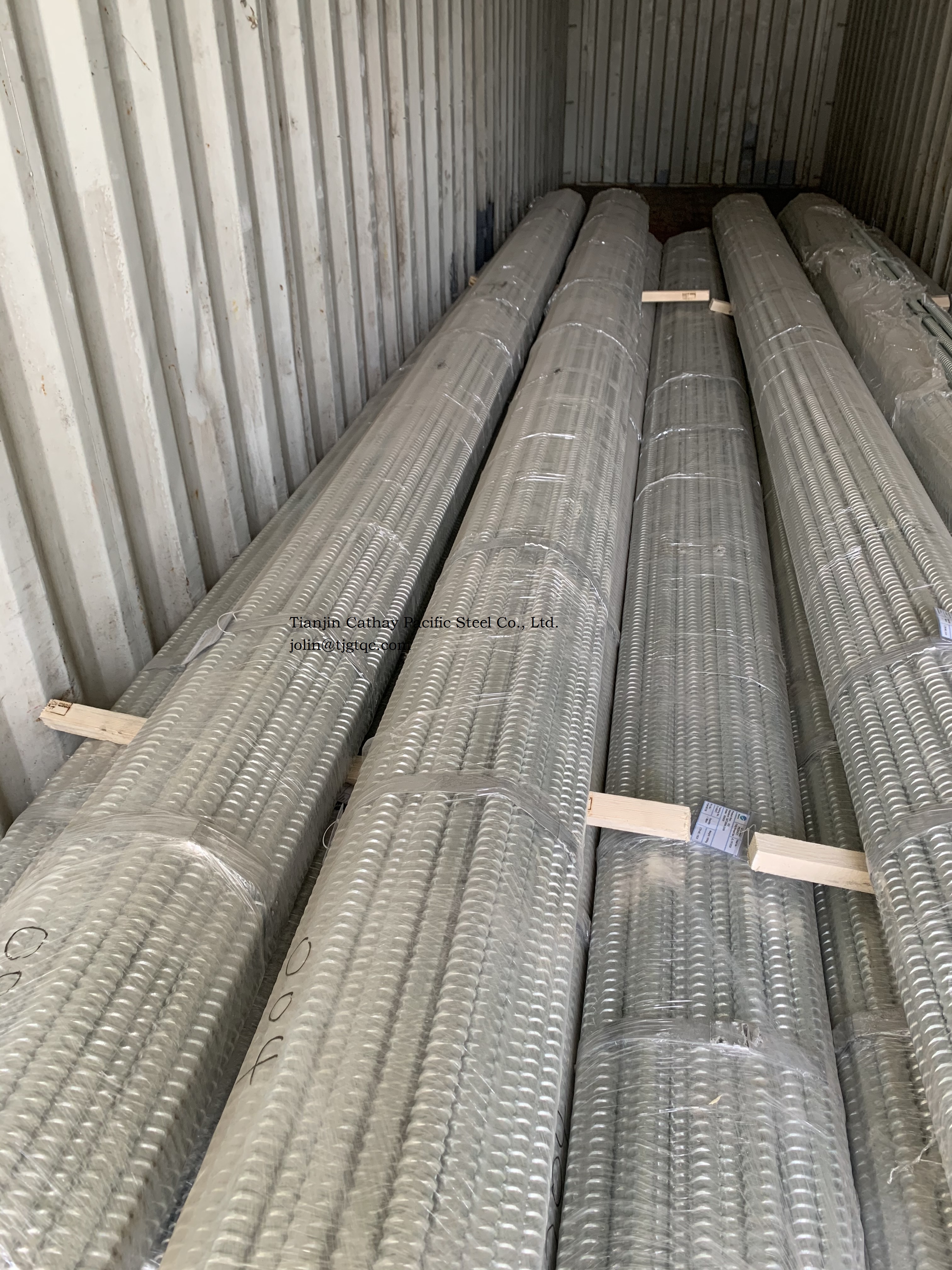

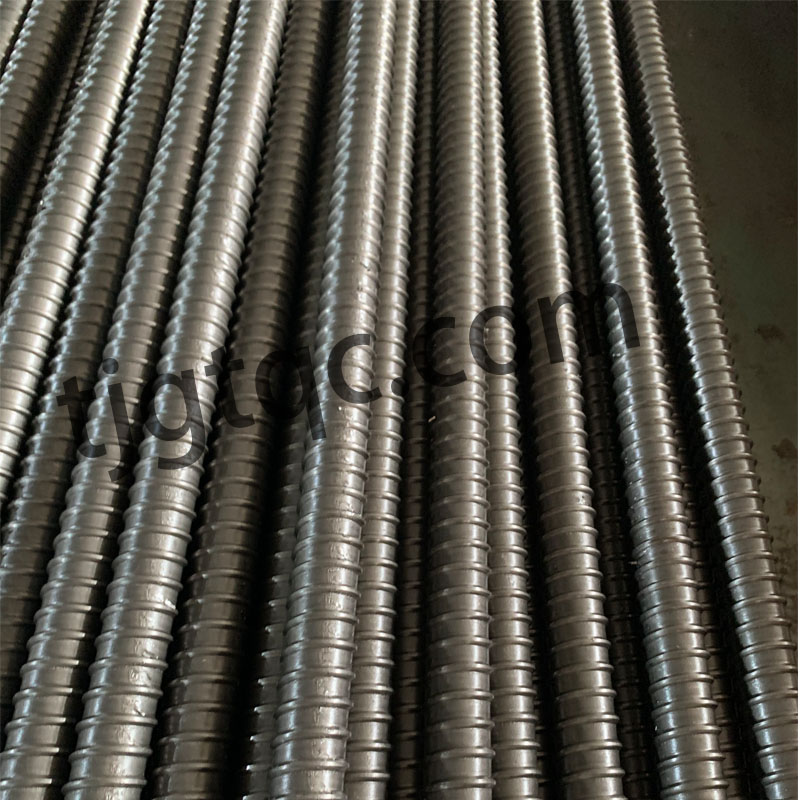

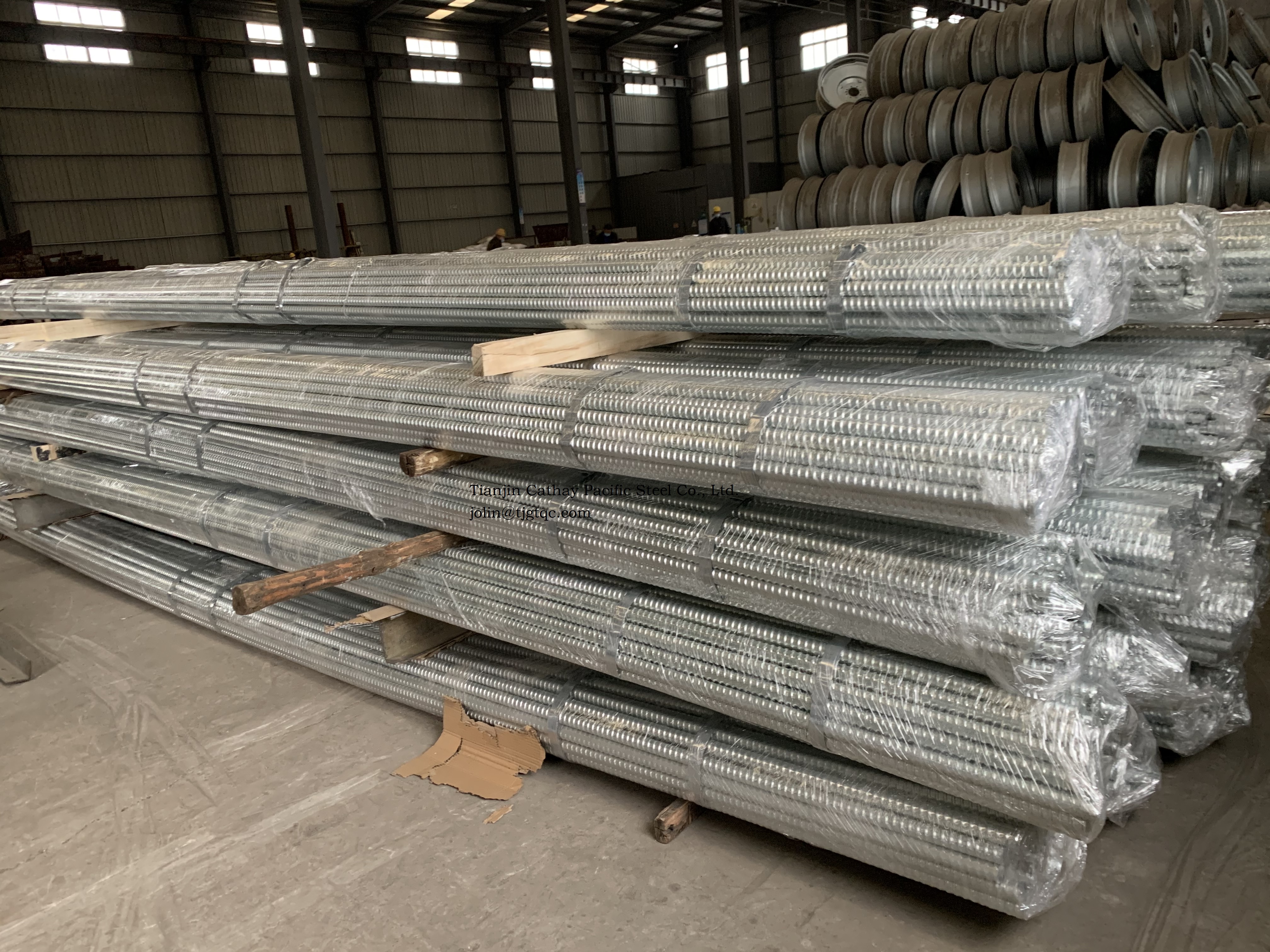

Fixed Competitive Price Steel Bar For Prestressed Concrete - 50mm Fully Thread Bar – Cathay detail pictures

Fixed Competitive Price Steel Bar For Prestressed Concrete - 50mm Fully Thread Bar – Cathay detail pictures

Fixed Competitive Price Steel Bar For Prestressed Concrete - 50mm Fully Thread Bar – Cathay detail pictures

Related Product Guide:
Assume full duty to satisfy all demands of our clients; reach steady advancements by marketing the development of our purchasers; grow to be the final permanent cooperative partner of clientele and maximize the interests of customers for Fixed Competitive Price Steel Bar For Prestressed Concrete - 50mm Fully Thread Bar – Cathay, The product will supply to all over the world, such as: Vancouver, Cologne, Australia, We follow up the career and aspiration of our elder generation, and we are eager to open up a new prospect in this field, We insist on "Integrity, Profession, Win-win Cooperation", because we have a strong backup, that are excellent partners with advanced manufacturing lines, abundant technical strength, standard inspection system and good production capacity.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
