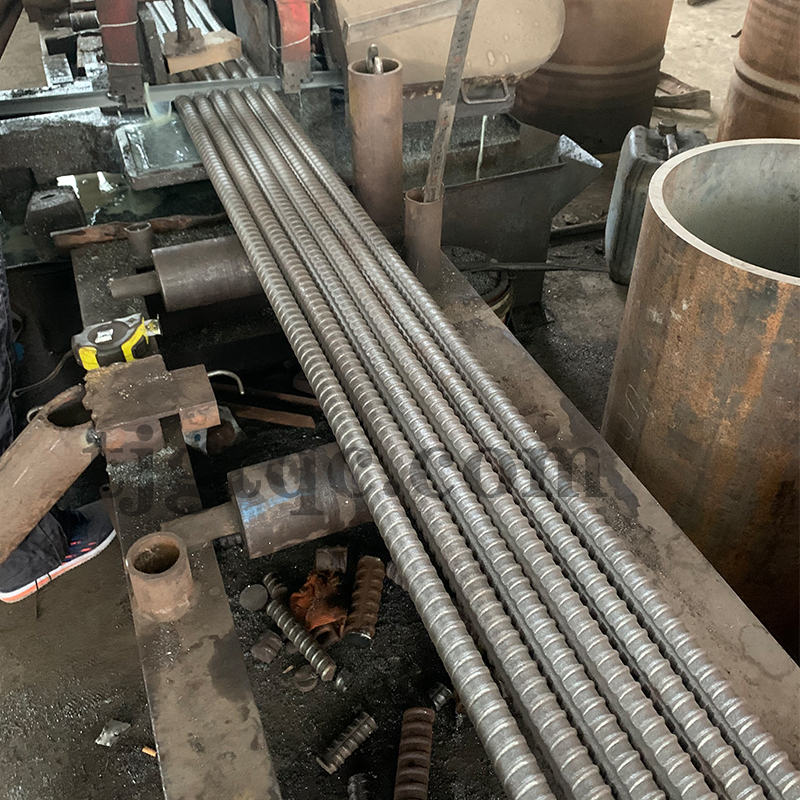

Finished rolled threaded steel PSB930-36 with national standard quality before leaving the factory

Finished rolled threaded steel PSB930-36 with national standard quality before leaving the factory Featured Image
  • Finished rolled threaded steel PSB930-36 with national standard quality before leaving the factory
  • Finished rolled threaded steel PSB930-36 with national standard quality before leaving the factory

Short Description:


Download as PDF

Product Detail

Parameter

Mechanical Properties

Product Tags

Longitudinal Resistance: External tendons are commonly installed in the longitudinal direction to increase a structure’s resistance against traffic loads. This is particularly useful for bridges and large slabs where heavy loads are a concern.

Pc Bar

PT BAR

  • Previous:
  • Next:

    • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
