Finish rolled rebar galvanized
Prestressed threaded bar (or PT baThreaded reinforcement for prestressed concrete PSB1200rs) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.
Fully threaded steel bars are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.

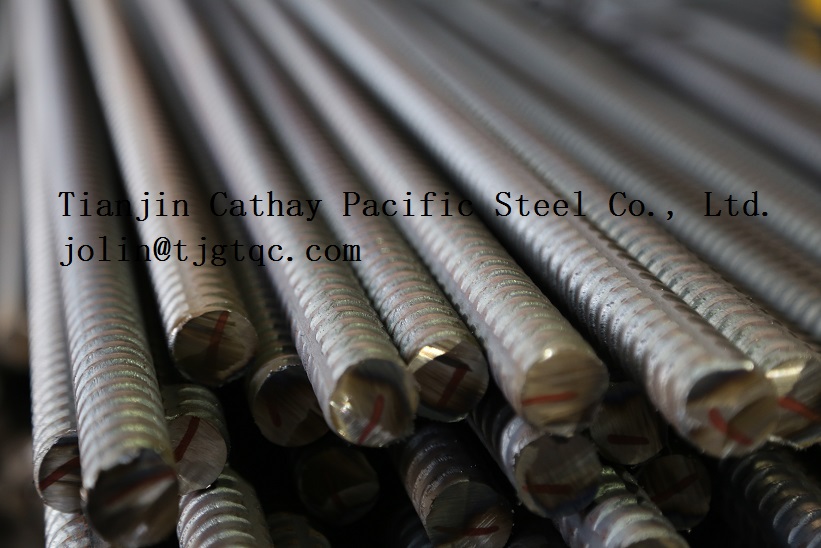

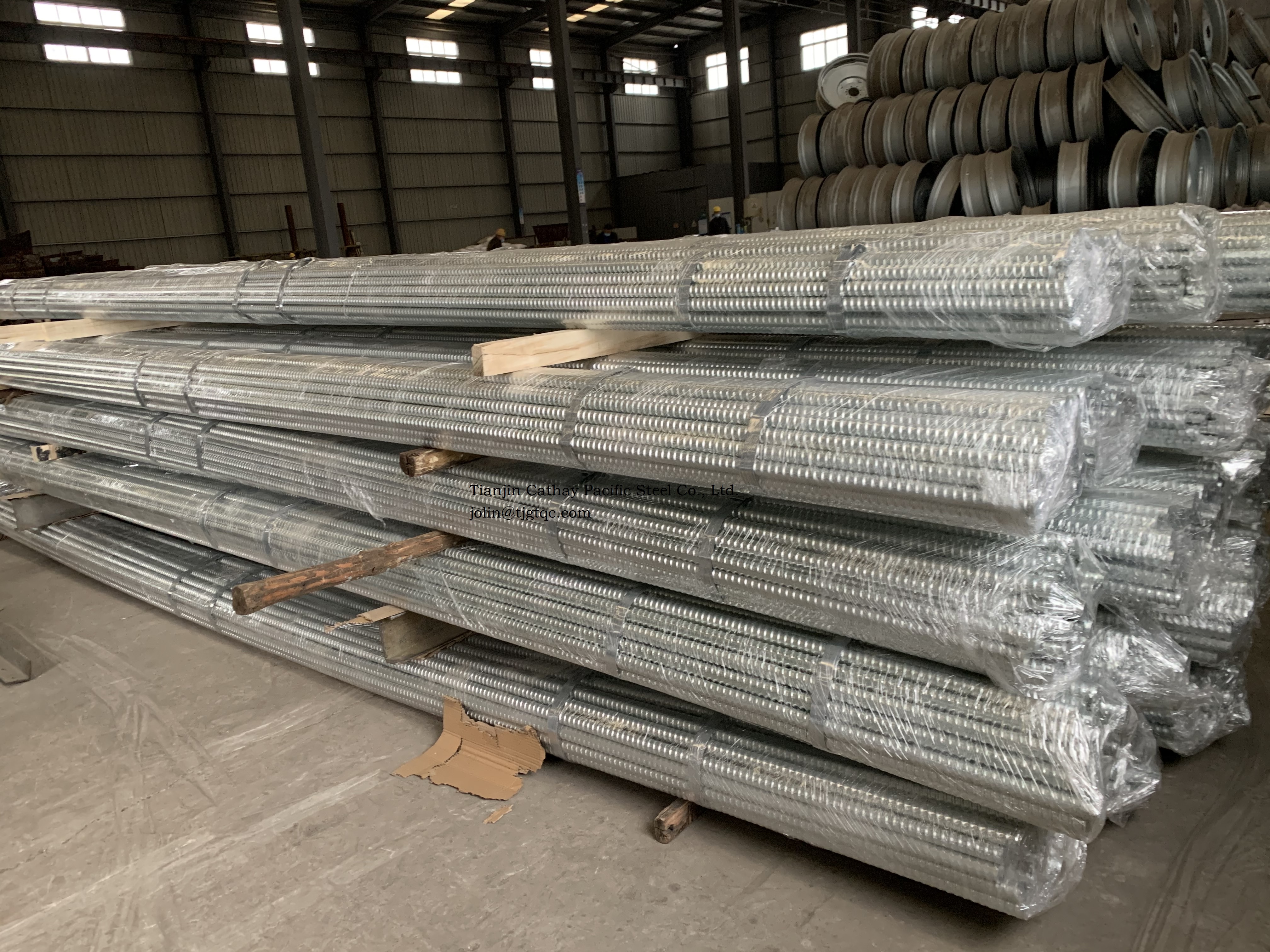

The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ⌀15mm-⌀50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.
|
Nominal Diameter |
Diameter |
H |
B |
L |
Nominal Section |
Nominal Weight |
|
|
Dv |
Dh |
||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
Area(mm2) |
Kg/m |
|
15 |
15 |
15 |
1.0 |
4.5 |
10 |
176 |
1.47 |
|
18 |
18 |
18 |
1.2 |
4.0 |
10 |
254.5 |
2.11 |
|
20 |
20 |
20 |
1.3 |
4.8 |
10 |
314 |
2.47 |
|
25 |
25 |
25 |
1.6 |
6.0 |
12 |
490.9 |
4.10 |
|
32 |
32 |
32 |
2.0 |
7.0 |
16 |
804.2 |
6.65 |
|
36 |
36 |
36 |
2.5 |
8.0 |
18 |
1018 |
8.41 |
|
40 |
40 |
40 |
3.0 |
8.0 |
20 |
1256.6 |
10.34 |
|
50 |
50 |
50 |
3.0 |
9.0 |
24 |
1963.5 |
16.28 |
|
60 |
60 |
60 |
3.0 |
10.0 |
22 |
2827 |
23.36 |
|
63.5 |
63 |
63.5 |
3.0 |
12.0 |
22 |
3167 |
26.20 |
|
65 |
65 |
65 |
3.0 |
12.0 |
22 |
3318 |
27.4 |
|
70 |
70 |
70 |
3.0 |
12.0 |
22 |
3848 |
31.8 |
|
75 |
75 |
75 |
3.0 |
12.0 |
22 |
4418 |
36.9 |
|
Grade 830/1030 |
Norminal Dia. |
Cross Section |
Yield Strength |
Tensile Strength |
Yield Load |
Ultimate Load |
Elongation |
Liner Weight |
|
(mm) |
(Area) |
≥(Mpa) |
≥(Mpa) |
(KN) |
(KN) |
(A/%) |
(kg/m) |
|
|
15 |
177 |
830 |
1030 |
147 |
182 |
6 |
1.47 |
|
|
20 |
314 |
830 |
1030 |
261 |
323 |
6 |
2.47 |
|
|
25 |
491 |
830 |
1030 |
408 |
506 |
6 |
4.1 |
|
|
32 |
804 |
830 |
1030 |
667 |
828 |
6 |
6.65 |
|
|
36 |
1018 |
830 |
1030 |
845 |
1049 |
6 |
8.41 |
|
|
40 |
1257 |
830 |
1030 |
1043 |
1295 |
6 |
10.34 |
Company Introduction

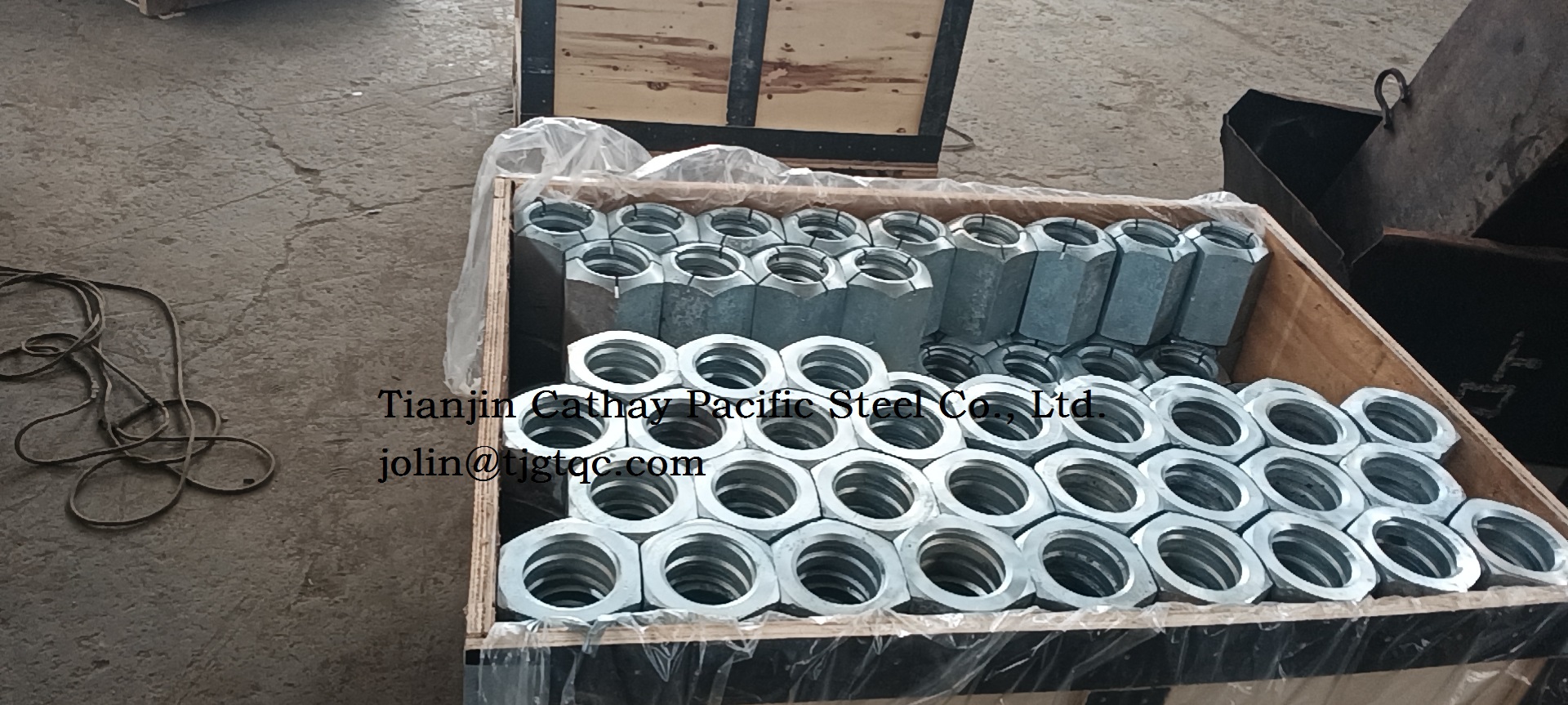

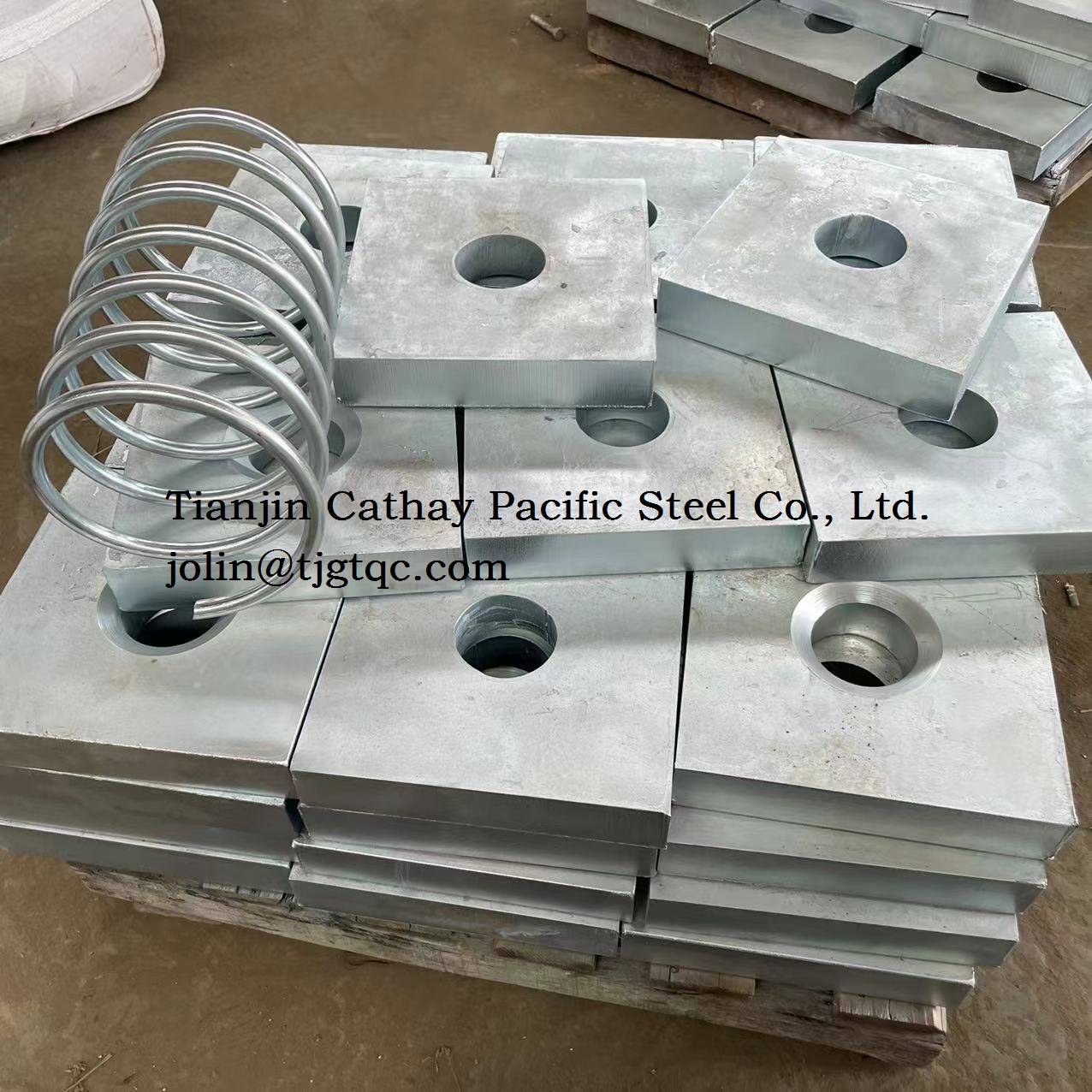

Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.
Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.
The Projects We Participated in:
1. Hongkong- Zhuhai-Macao Bridge
2. Mongolian Shangri-la Hotel
3. The Uzbek Railway Engineering
4. Cambodia San Secondary Hydropower Station
5. Brunei PMB Cross- Sea Bridge
6. Malaysia DASH CB4 Expressway Project
7. Papua New Guinea Hilton Hotel
8. Bangladesh Airport Projects
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
