Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay

Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay Featured Image
  • Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay

Short Description:


Download as PDF

Product Detail

Parameter

Mechanical Properties

Product Tags

Related Video

Feedback (2)

Often customer-oriented, and it's our ultimate target to become not only probably the most reputable, trustable and honest provider, but also the partner for our customers for Prestressed Bearing Plate , Prestressing Screw Threaded Stee Bar , Bar Post Tension Tendon , We feel that a passionate, ground breaking and well-trained workforce can create fantastic and mutually useful business associations with you quickly. Be sure to really feel totally free to contact us for more particulars.
Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay Detail:

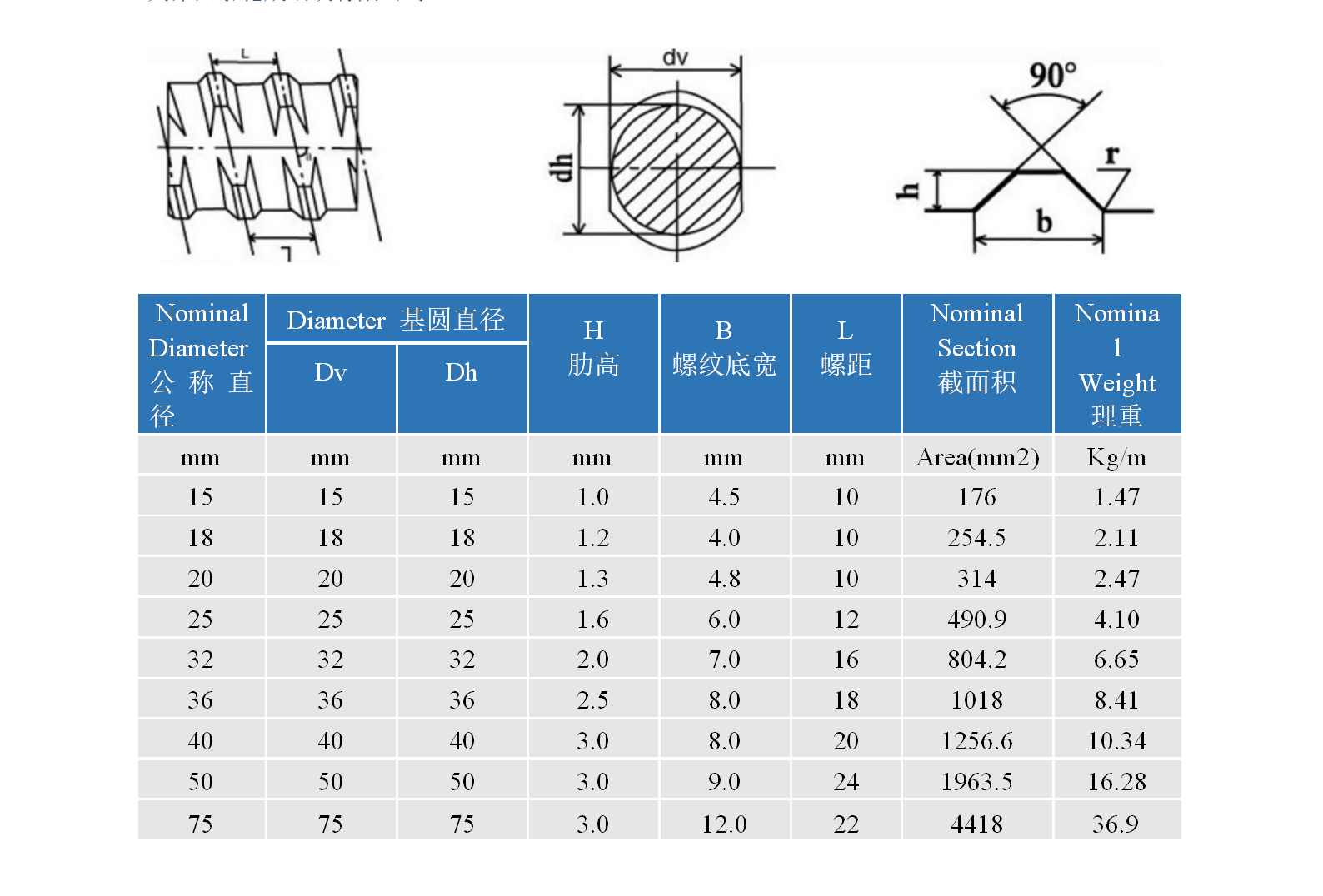

PT bar size

Grade 950 PT bar/Dia.40 Post tensioning Bar
Grade No. 500/670,785/980,830/1030,930/1080,1080/1230,1200/1330
Standard GB,ASTM
Diameter 15mm to 75mm
Length 6m,12m or cutting any length
Surface Black,Hot Dip Galvanized,Epoxy Coating
Accessories Hex Nut,Coupler,Plate

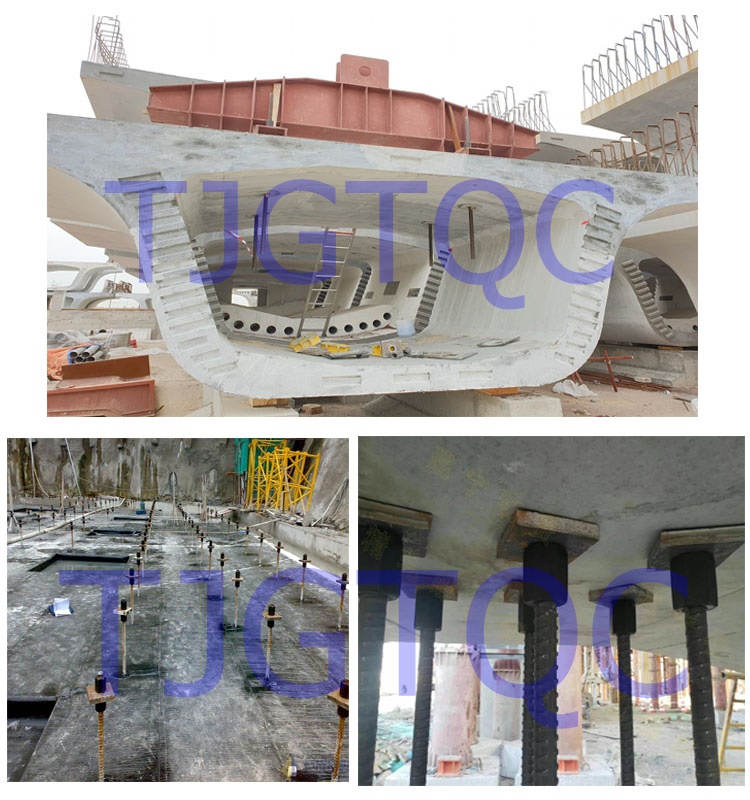

Application: Grade 950 PT bar/Post tensioning Bar normally use for soil nailing,rock bolts,formwork,ground anchors,bridge,highway,railway etc

pt bar application

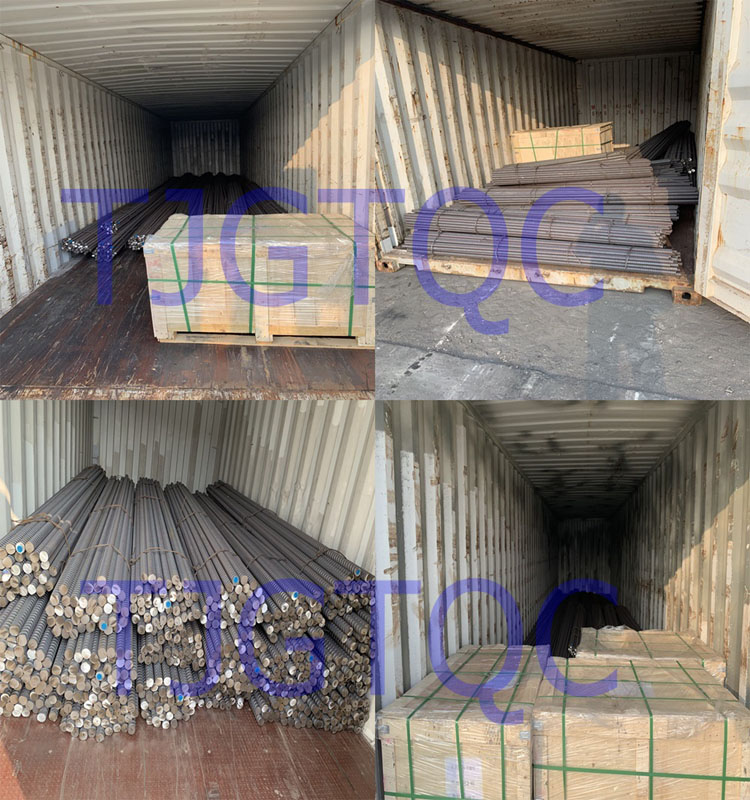

Fast Delivery for Post Tesoining Bar

shipping delivery

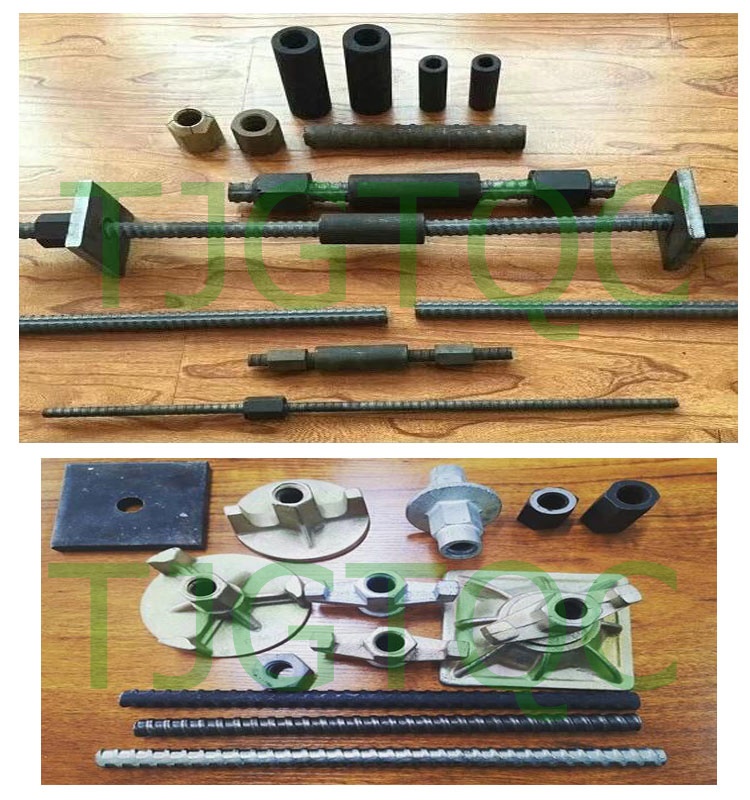

We have all series of Prestressing Steel

related products

Sophia Wang

Nob No.: 0086 185 2252 9216

Email: sophia at tjgtqc.com













Product detail pictures:

Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay detail pictures

Related Product Guide:
We always believe that one's character decides products' quality, the details decides products' high-quality ,together with the REALISTIC,EFFICIENT AND INNOVATIVE crew spirit for Factory wholesale Grade 930 Pt Bar/Dia32 Post Tensioning Bar - Grade 500 Tie Rod for Formwork – Cathay, The product will supply to all over the world, such as: Lithuania , Ethiopia , Moldova , We attained ISO9001 which provides solid foundation for our further development. Persisting in "High quality, Prompt Delivery, Competitive Price", we have established long-term cooperation with clients from both overseas and domestically and get new and old clients' high comments. It is our great honor to meet your demands. We are sincerely expecting your attention.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
