Solid Threaded Bar/Post Tensioning Bar for Building Bridge Infrastructure
|
Solid Threaded Bar/Post Tensioning Bar for Building Bridge Infrastructure |
|
| Grade No. | 500/670,785/980,830/1030,930/1080,1080/1230,1200/1330 |
| Standard | GB,ASTM |
| Diameter | 15mm to 75mm |
| Length | 6m,12m or cutting any length |
| Surface | Black,Hot Dip Galvanized,Epoxy Coating |

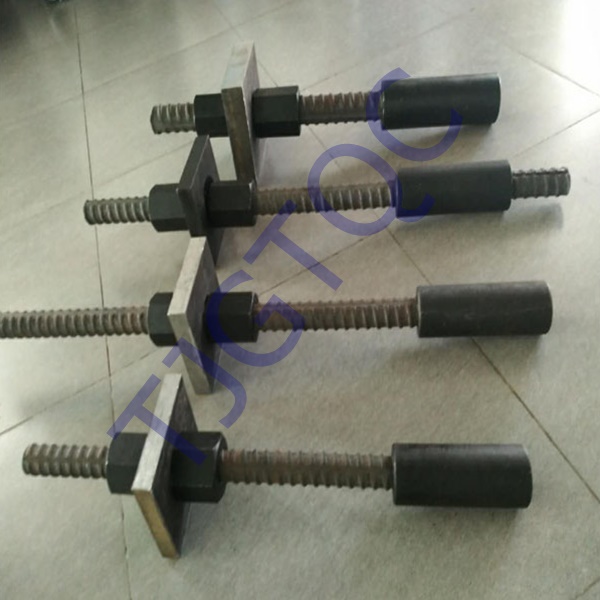

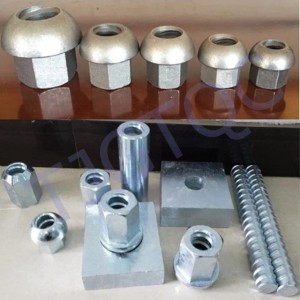

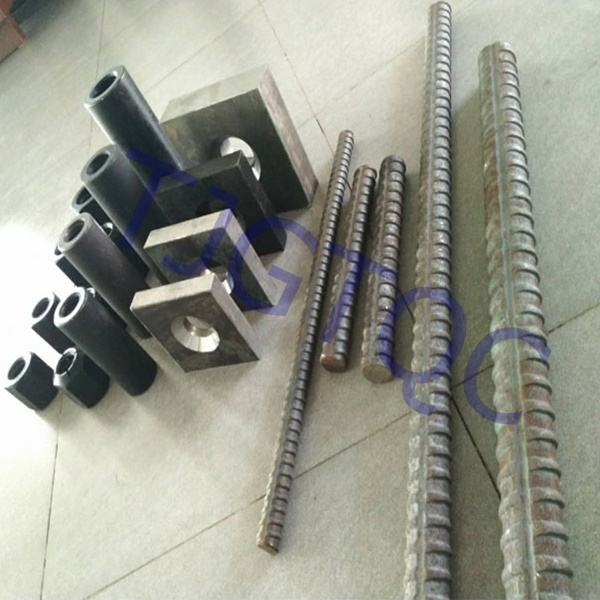

| Accessories | Hex Nut,Coupler,Plate |
Application: PT bar/Post tensioning Bar normally use for soil nailing,rock bolts,formwork,ground anchors,bridge,highway,railway etc
Fast Delivery for Post Tesoining Bar/Fully Threaded Steel Bar
We have all series of Prestressing Steel
Contact Information:
Sophia Wang
Marketing | Tianjin Cathay Pacific Steel Co.,Ltd.
*Geotechnical *Reinforcing *Post-Tensioning *Ground Anchors *Tunneling *Mining
Mob No.: 0086 185 2252 9216/152 2237 2165(WhatsApp)
Email: sophia at tjgtqc.com
Website: www.tjgtqc.com
Add: B10-1-201,, Kexin Industry Area,Zhongguan Village,, Beichen District,, Tianjin 300400,China
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
