Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay Detail:

Grade75 barra helicodal bolts for mining and soil nailing

A post tension bar is a strong metal rod that is used in the construction of concrete structures such as bridges, buildings, and parking garages. Its advantage over traditional reinforcement is that it creates a compressive force within the concrete, which helps to counteract the tensile forces that the structure will experience over time. This can improve the strength, durability, and integrity of the concrete structure, making it more resistant to cracking, corrosion, and other forms of damage. Additionally, the use of post tension bars can help reduce the amount of material needed for a structure, making it lighter and more cost-effective.

System Description:

The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on user’s demand subject to the maximum length of 18m.

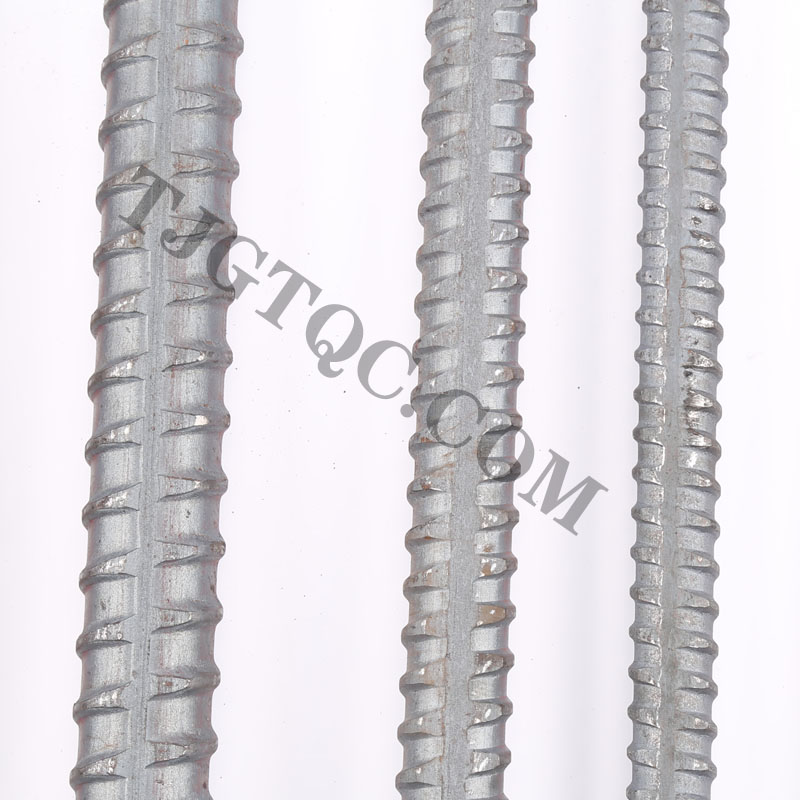

The screw thread steel bar

Fully Threaded Bar - can be cut and coupled at any point.

Low Relaxation Steel - minimum relaxation during service life.

Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.

Grade PSB500，PSB830，PSB930，PSB1080
Diameter 15mm,0mm,25mm,32mm,36mm,40mm,50mm

Applications:

Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.

Specification

rebar prices steel rebar PS500 screw-thread steel Hot rolled ribbed steel bar G500 standard

1. Different grade:  500/630, 830/1030, 930/1080, 1080/1230

2. Diameter range: 15mm, 20mm, 25mm, 32mm, 36mm, 40mm, 50mm, 63.5mm, 75mm

3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction

Stock with fastest dlievery

62

39 12

38 37

17 444245

3

Contact Information

Wendy Lee

Tianjin Cathay Pacific Steel Co.,Ltd

Email: tjgtqc@tjgtqc.com

WhatsApp: 0086-176 1227 5091

Product detail pictures:

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay detail pictures

Related Product Guide:
"Based on domestic market and expand overseas business" is our development strategy for Factory Price Post Tensioning Thread Bar - Grade75 barra helicodal bolts for mining and soil nailing – Cathay, The product will supply to all over the world, such as: Croatia , Spain , Greek , We have been in operation for more than 10 years. We are dedicated to quality products and consumer support. We currently own 27 product utility and design patents. We invite you to visit our company for a personalized tour and advanced business guidance.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
