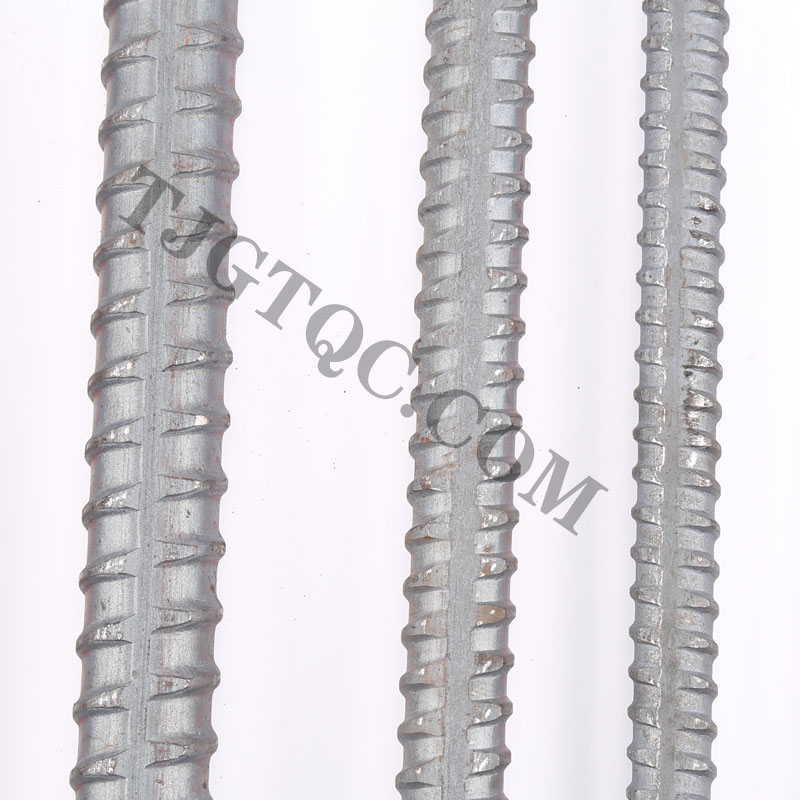

D36 PSB1080 stress bar for sheet piling construction
Fully threaded steel bar for the prestressing of concrete sold through And many times inspection by the National Steel Detection Center Bolt show that the quality is qualified, stable and reliable when use.
Market in China Main Land
1. The Qinghai-Tibet Railway Engineering
2. Hubei Jingzhou Yangtze River Bridge
3. Chongqing Dafuosi Yangtze River Bridge
4. Shandong Zibo-Laiwu Highway
5. The Beijing-Shanghai High Speed Railway Project
6. Hongkong- Zhuhai-Macao Bridge

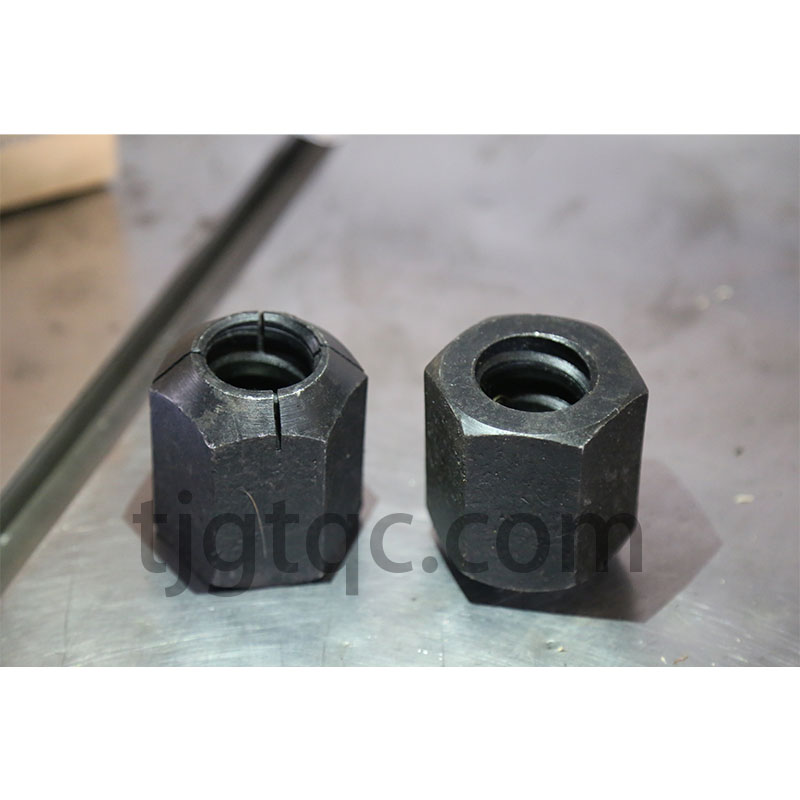

Hex Thin Nut：
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
