China Cheap price Post Tensioned Steel Bar For Construction - Post Tensioning Screw Thread Steel Bar – Cathay Detail:

Post Tensioning Screw Thread Steel Bar

Grade Number of Post Tensioning Tie Bars



Grade Yield Strength Tensile Strength
500 500MPa 630MPa
830 830MPa 1030MPa
930 930MPa 1080MPa
1080 1080MPa 1230MPa

Application of  Post Tensioning System Bar,

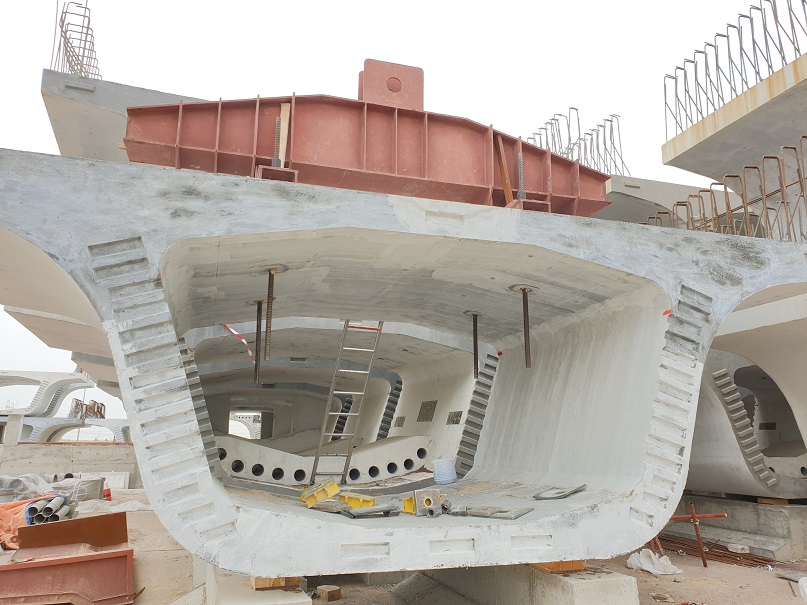

Our Prestressing thread bar system Grade 930/1080 had been used on several bridges in India,Thailand and Colombia

IMG_0811

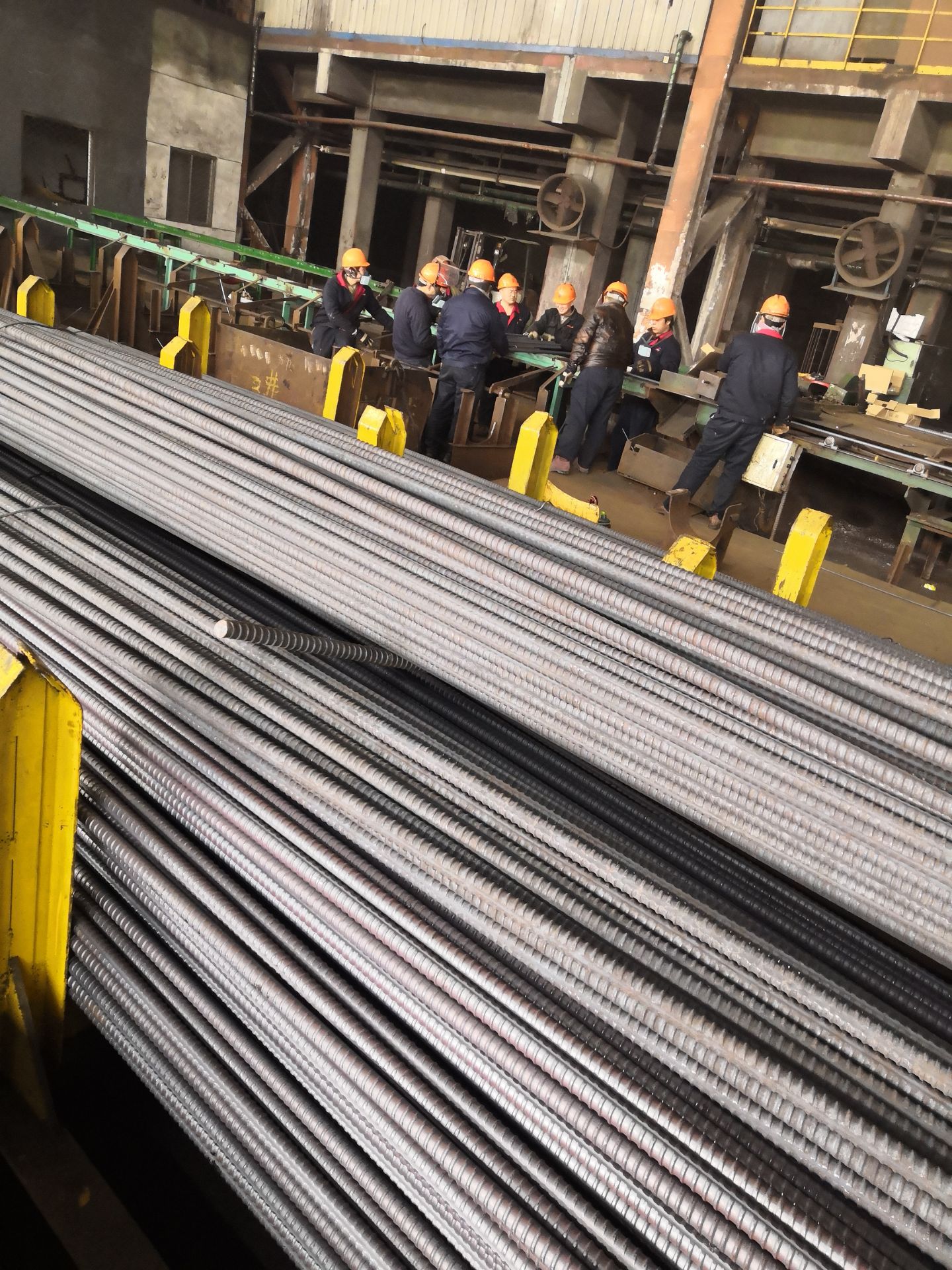

Stock for Post Tensioning Screw Thread Steel Bar

Lead time can be within 7 days.

QQ图片20190111141753

Tianjin Guotai Gancheng Steel Co., LTD. Main business: fine rolled rebar and supporting anchor (fine rolled nut, fine rolled gasket, fine rolled connector, screw bar), 15.2 steel strand and other steel.

Introduce: Long term supply of Φ15, Φ20, Φ25, Φ28, Φ32, Φ36, Φ40, Φ42, Φ50, Φ63.5, Φ75 (mm) fine rolled screw steel.

The threaded bar for prestressed concrete (also called fine rolled threaded bar) is a straight bar with large diameter, high strength and high dimensional precision rolled on the whole bar with discontinuous external thread. The steel bar at any section can be screwed on a connector with internal thread for connection or screwed on threaded nuts for anchorage.

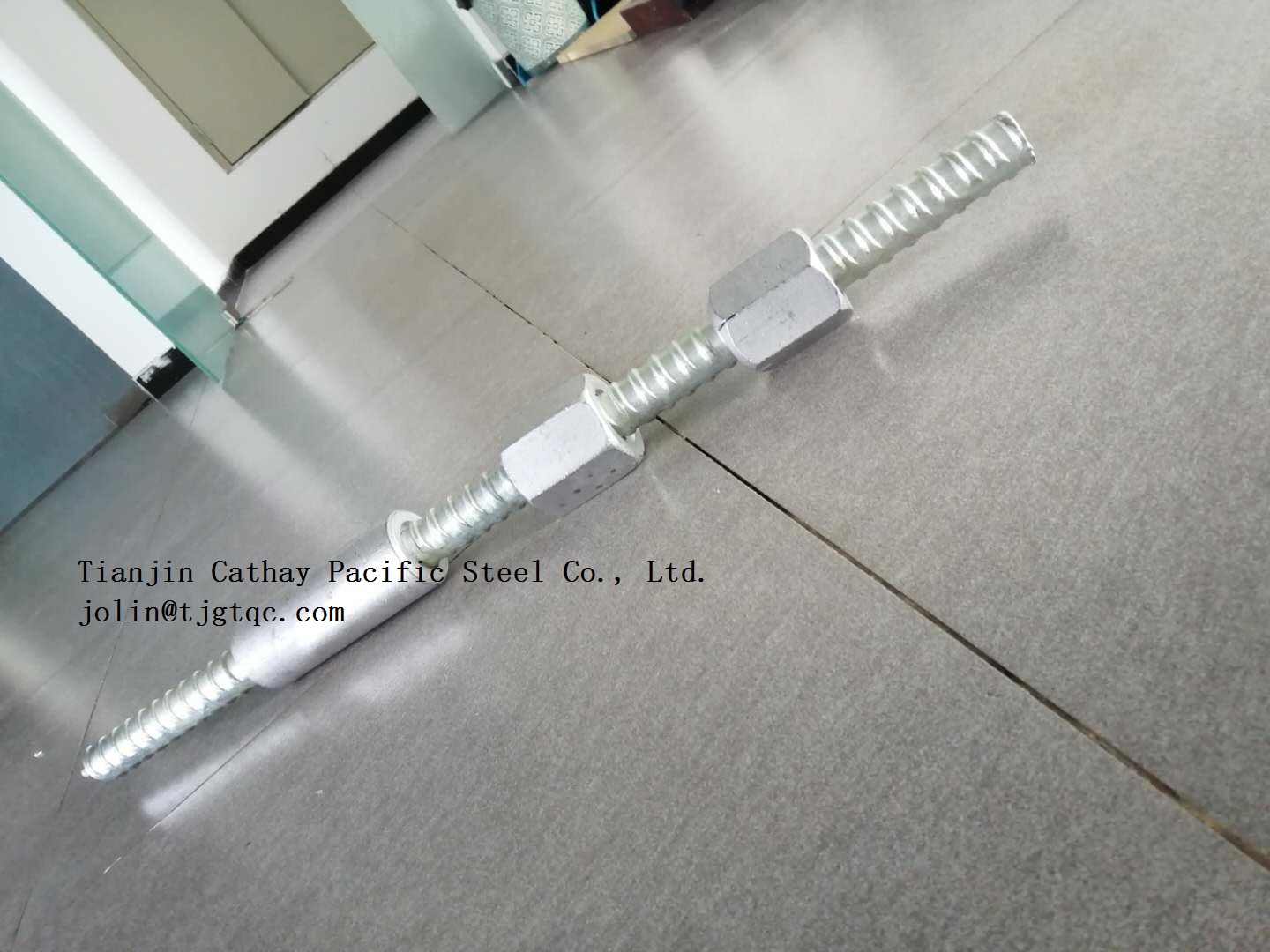

82

32

32

69

68

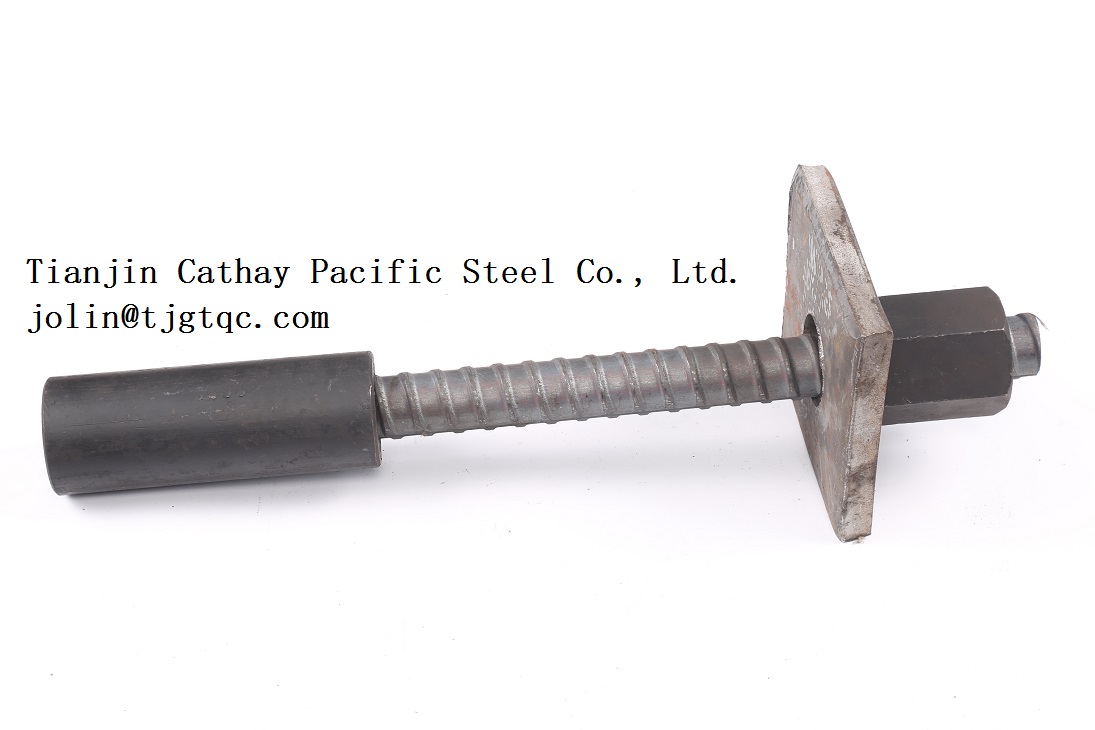

79


Product detail pictures:

China Cheap price Post Tensioned Steel Bar For Construction -
 Post Tensioning Screw Thread Steel Bar – Cathay detail pictures

China Cheap price Post Tensioned Steel Bar For Construction -
 Post Tensioning Screw Thread Steel Bar – Cathay detail pictures

China Cheap price Post Tensioned Steel Bar For Construction -
 Post Tensioning Screw Thread Steel Bar – Cathay detail pictures

China Cheap price Post Tensioned Steel Bar For Construction -
 Post Tensioning Screw Thread Steel Bar – Cathay detail pictures


Related Product Guide:

To create much more benefit for consumers is our company philosophy; customer growing is our working chase for China Cheap price Post Tensioned Steel Bar For Construction - Post Tensioning Screw Thread Steel Bar – Cathay, The product will supply to all over the world, such as: azerbaijan , Juventus , Barbados , Profession, Devoting are always fundamental to our mission. We have always been in line with serving customers, creating value management objectives and adhering to the sincerity, dedication, persistent management idea.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
