Overall, soil nailing is a cost-effective and versatile method for stabilizing soil and preventing erosion. Its usage has increased in popularity in recent years due to advancements in technology, and its potential applications are vast. With continued research and development, soil nailing will likely become an even more integral part of the construction industry in the years to come.
Title: Revolutionary Post-Tension Bar System Changing Construction Industr
Introduction:

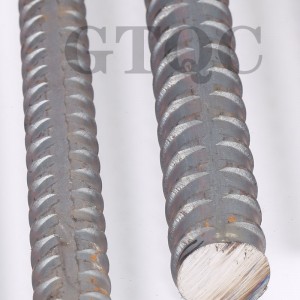

In a bid to improve construction efficiency and enable the creation of structurally sound and sustainable buildings, a revolutionary post-tension bar system is set to revolutionize the construction industry. This innovative construction technique utilizes high-strength steel bars, known as post-tension bars, to reinforce concrete structures, providing enhanced stability and longevity. Let's delve into the details of this groundbreaking development.
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
