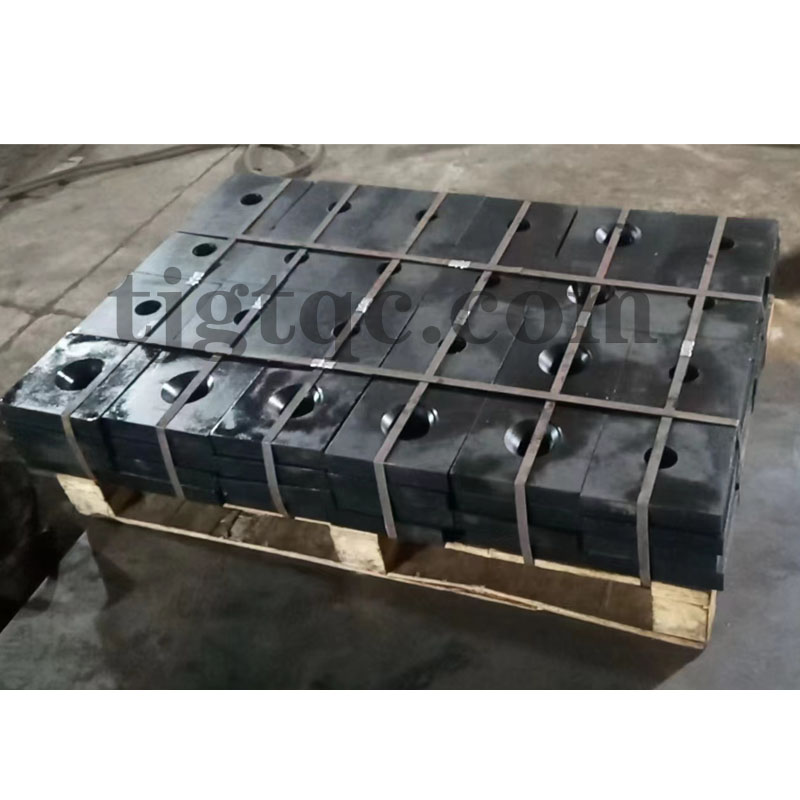

Anchor Wedge Plates or Anchorage Wedge Plates
A threaded bar can be used as a ground anchor by drilling a hole into the ground and inserting the bar deep enough to provide sufficient stability for whatever is being anchored. This could be anything from a small tent or canopy to a large sign or billboard. The bar is typically secured in place with concrete, soil, or other materials that provide enough friction to prevent it from being pulled out of the ground by force. Depending on the weight and size of the structure being anchored, multiple bars may be needed to ensure the necessary strength and stability.
Product Introduction
|
Product Name |
Nominal Diameter |
Material |
SW |
H |
OD |
Hardness |
Weight |
|
Dome Nut |
(mm) |
(-) |
(mm) |
(mm) |
(mm) |
(HRC) |
(kg) |
|
25 |
S45C/40Cr |
50 |
75 |
72 |
28-38 |
1.12 |
|
|
32 |
S45C/40Cr |
60 |
90 |
80 |
28-38 |
1.97 |
|
|
36 |
40Cr |
65 |
100 |
90 |
28-38 |
2.57 |
|
|
40 |
40Cr |
70 |
115 |
100 |
28-38 |
3.38 |
|
|
50 |
40Cr |
85 |
145 |
120 |
28-38 |
5.81 |
