Anchor System Post Tension Bars for Heavy Duty Drywall Anchor
System Description:
High-performance solution for improving the structural integrity and load-carrying capacity of concrete structures, and is specifically designed for straight tendons without any profile. There are two types of Thread bars- Hot rolled and Cold Rolled. All bars are with continuous thread end to end of bar and can be cut in any location and coupled. The low-slip anchorage with nuts allows for low losses of prestressing force, even with short bars.
Fully Threaded Bar - can be cut and coupled at any point.
Low Relaxation Steel - minimum relaxation during service life.
Prestressing Grade Steel - high strength offers weight savings and reduced working diameters.
| Grade | PSB500，PSB830，PSB930，PSB1080 |
| Diameter | 15mm,0mm,25mm,32mm,36mm,40mm,50mm |
Applications:
Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.
1. Strengthening of Structures
2. Longitudinal Resistance
3. Prefabricated Tendon Systems
4. Shear Resistance
5. Bonded Post-Tensioning Systems
6. Stress Bar Post- Tensioning
7. Anchorages for Post-Tensioning
Anchorages are crucial for fixing the ends of the tendons in post-tensioning systems. They are cast into the concrete and transfer the entire load from the strands into the concrete, preventing the concrete from splitting due to high local bursting forces
rebar prices steel rebar PS500 screw-thread steel Hot rolled ribbed steel bar G500 standard
1. Different grade: 500/630, 830/1030, 930/1080, 1080/1230
2. Diameter range: 15mm, 20mm, 25mm, 32mm, 36mm, 40mm, 50mm, 63.5mm, 75mm
3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction

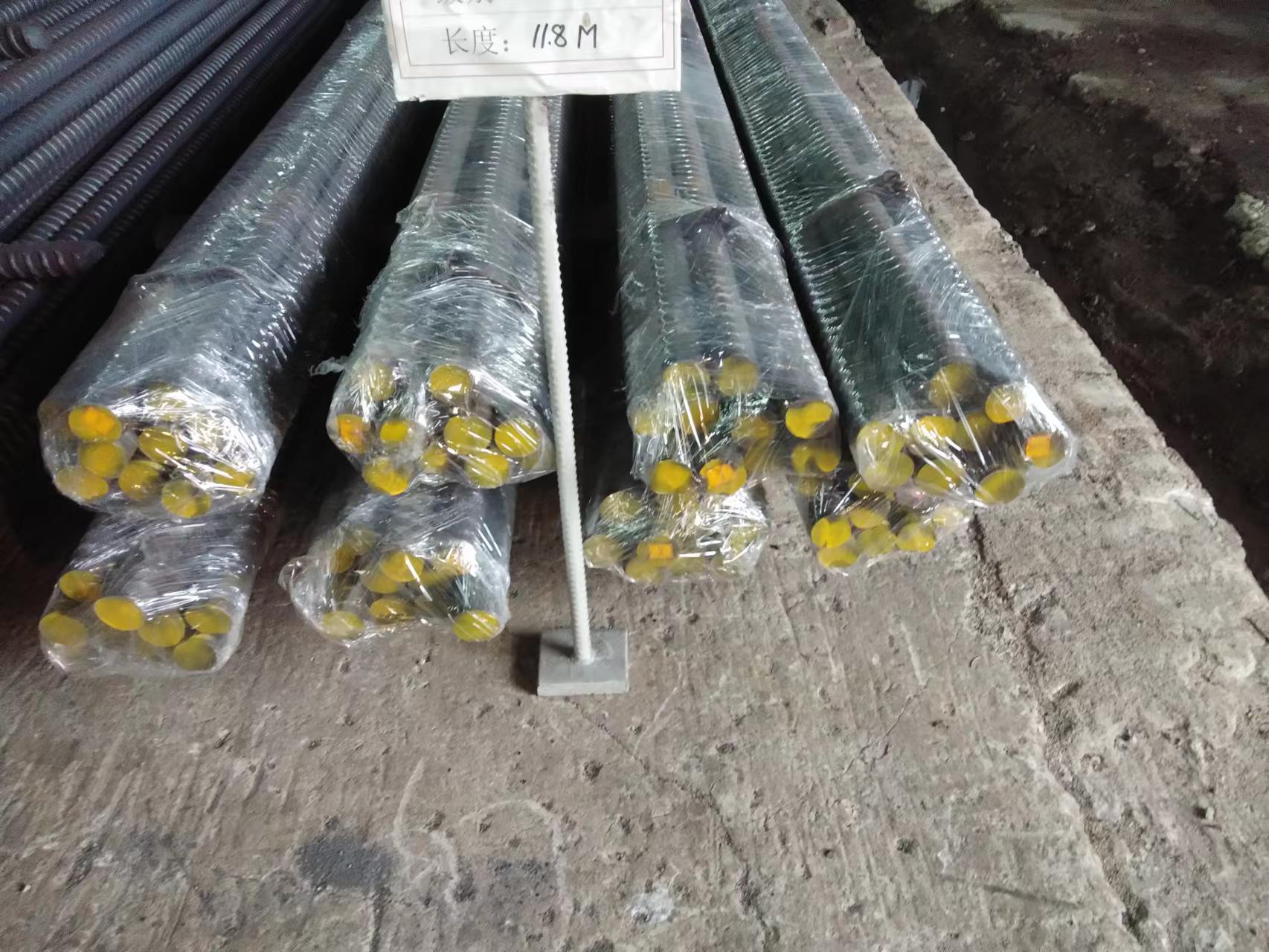

Stock with fastest dlievery
Contact Information
Wendy Lee
Tianjin Cathy Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
WhatsApp: +86-176 1227 5091
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
