2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay

2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay Featured Image
  • 2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay
  • 2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay

Short Description:


Download as PDF

Product Detail

Parameter

Mechanical Properties

Product Tags

Related Video

Feedback (2)

We have been proud from the higher consumer gratification and wide acceptance due to our persistent pursuit of high quality both on product or service and service for Screw Threaded Steel Bar And Nut Coupler Plate , Portable Parallel Bars , Hex Socket Nut , We welcome new and old clients from all walks of lifestyle to speak to us for potential organization relationships and mutual success!
2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay Detail:

Full Threaded Bar

The continuous external thread is made by hot extrolling method. The shape of thread bar is shown as following figure. The main diameter is 15mm to 75mm and the strength is 500MPa to  1080MPa.

Fully Threaded Steel Bars / Post-Tensioning Bars

Grade: PSB830

Length: 6m,9m, and 12m or Cutting sizes as requests.

Application: High-speed Railway, bridge, concrete anchoring system, formwork panels,  industrial facilities, precast-construction, water treatment plants

14

50 51 52

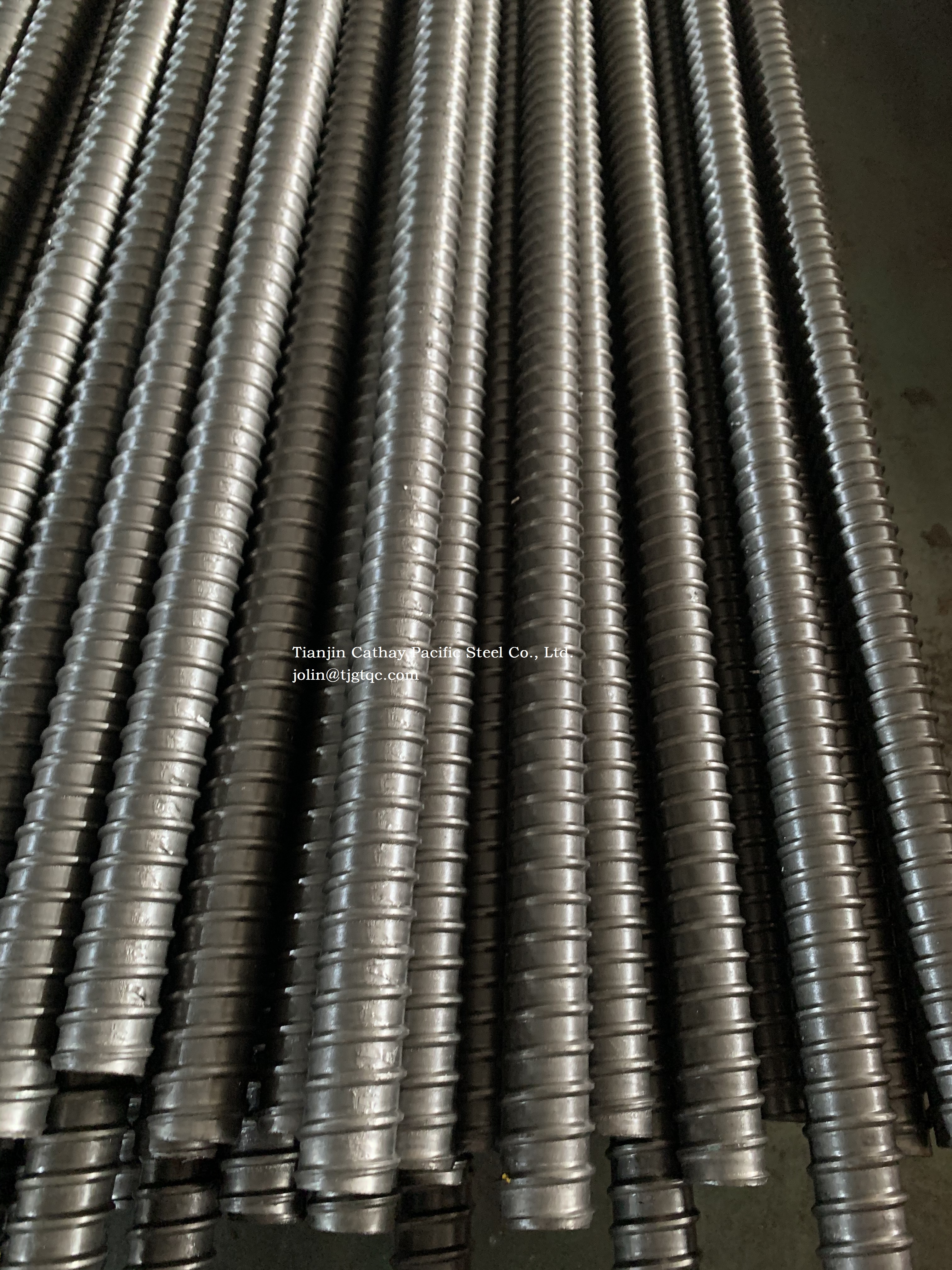

Product detail pictures:

2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay detail pictures

2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay detail pictures

Related Product Guide:
Our organization insists all along the quality policy of "product quality is base of business survival; purchaser gratification is the staring point and ending of an business; persistent improvement is eternal pursuit of staff" as well as the consistent purpose of "reputation 1st, purchaser first" for 2019 High quality Thread Steel Bar - Full Threaded Bar – Cathay, The product will supply to all over the world, such as: Iran , Adelaide , Nepal , To create more creative products, maintain high-quality products and update not only our products but ourselves so as to keep us ahead of the world, and the last but most vital one: to make every client satisfied with everything we offer and to grow stronger together. To be the real winner, starts here!

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
