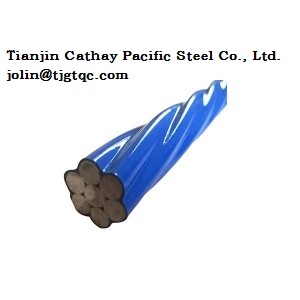

15.24mm 15.7mm unbonded high tensile pc wire strand railway construction

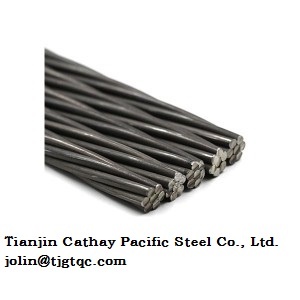

PC strand consists of wires spun together in the same direction and with the same lay length. The PC strand product contains 2-wire, 3-wire and 7-wire strands. Low relaxation PC strand can be used for either prestressing or post-tensioning of concrete.
Feature: Low relaxation, High Tensile Strength.
Construction: 1*2,1*3 and 1*7 wires
Application : PC Strand is mainly used for prestressed concrete structural reinforcement, such as span railway and highway bridges, crane beam, ground anchoring project, multi-storey industrial plants and other.
Prestressed concrete strand (PC strand) is a high-grade, low-relaxation, 7-strand steel cord used in the reinforcement and strengthening of pre-stressed concrete structures. Because it is used in critical applications, this strand consists of high-carbon steel with a high tensile strength, manufactured to the highest quality standards to ensure its durability. PC strand is available in several different thicknesses, ranging between .25 inches and .6 inches in diameter.
COMMON USES FOR PC STRAND
Commercial buildings
High-rise buildings
Multi-level parking garages
Stadiums
Hangars
Silos
Railway sleepers
Aqueducts Highway and railway viaducts
Suspension bridges
| Product name | 9.53mm Pc Strand Prestressed Concrete Strand |
| Model Size | 1×3–8.6mm,10.8/11.1mm, |
| 1×7–7.94mm,9.3mm,9.53mm,12.7mm,12.9mm,15.2mm,15.24mm, 15.7mm,17.8mm,18.9mm, 21.6mm | |
| 1×9–21.8mm | |
| Standard | ASTMA416, BS5896, EN10138-3, AS/NZS4672,GB/T5224, KS7002, ISO6934-4, JISG3536. |
| Material | High carbon steel 82B and 77B |
| Tensile Strength | 1470Mpa ~ 1960Mpa |
| Dia.(mm) | 8.0mm–21.6mm |
| Surface treatment | Heat treatment, Polishing, shot blasting,Painting, Electro-plating, Chemical Plating, |
| Packing | Inner Diameter: 760mm Outside Diameter:1400mm Max Coil’s width: 760mm Coil’s Weight: 2500~3500 kg We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of thecoil has 3 wraps.There are two wooden pallets on the bottom of the coil. The coil is eye tosky in the container. |
Standard Export Bundle packing or as per customer’s requirement.
Jolin Wang / Sales Director
Tianjin Cathay Pacific Steel Co.,Ltd
Email / Skype: jolin(at)tjgtqc.com
Phone: 008617622687129 (Whatsapp / Wechat)
Tel: 0086 22 8461 2322
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
